Eticket · case study

One tap at the turnstile, the next tram on Home.

Kharkiv's electronic travel card for the metro, trams, trolleybuses and buses. In 2020 I designed the first app with two developers; in 2026 I redesigned it around the two moments that matter, paying at the turnstile and knowing when the next tram comes, and built it as a working prototype with AI.

Role: Product Designer
Timeline: 2020 · revisited 2026
Company: Eticket
Location: Kharkiv, Ukraine
Team: Product designer in a team of 3, with 2 developers

Deliverables

UX research
UX audit
User flows
Mobile prototype
Design system

Live demo Design system

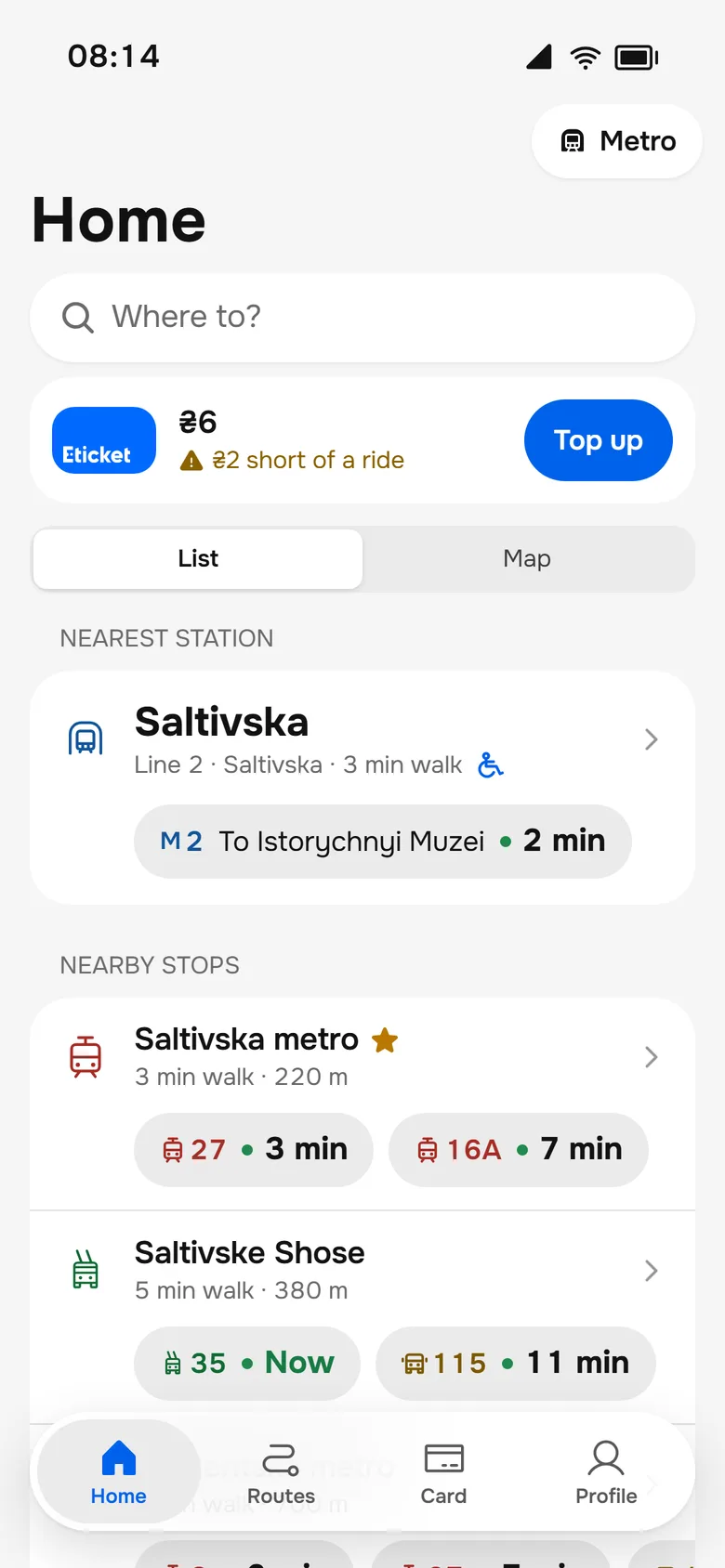

Home screen: the nearest metro station and nearby stops, each with live arrivals — Home: arrivals, not just stops

Tap result: Paid, fare, new balance and a free transfer window — One tap: paid, with the transfer window

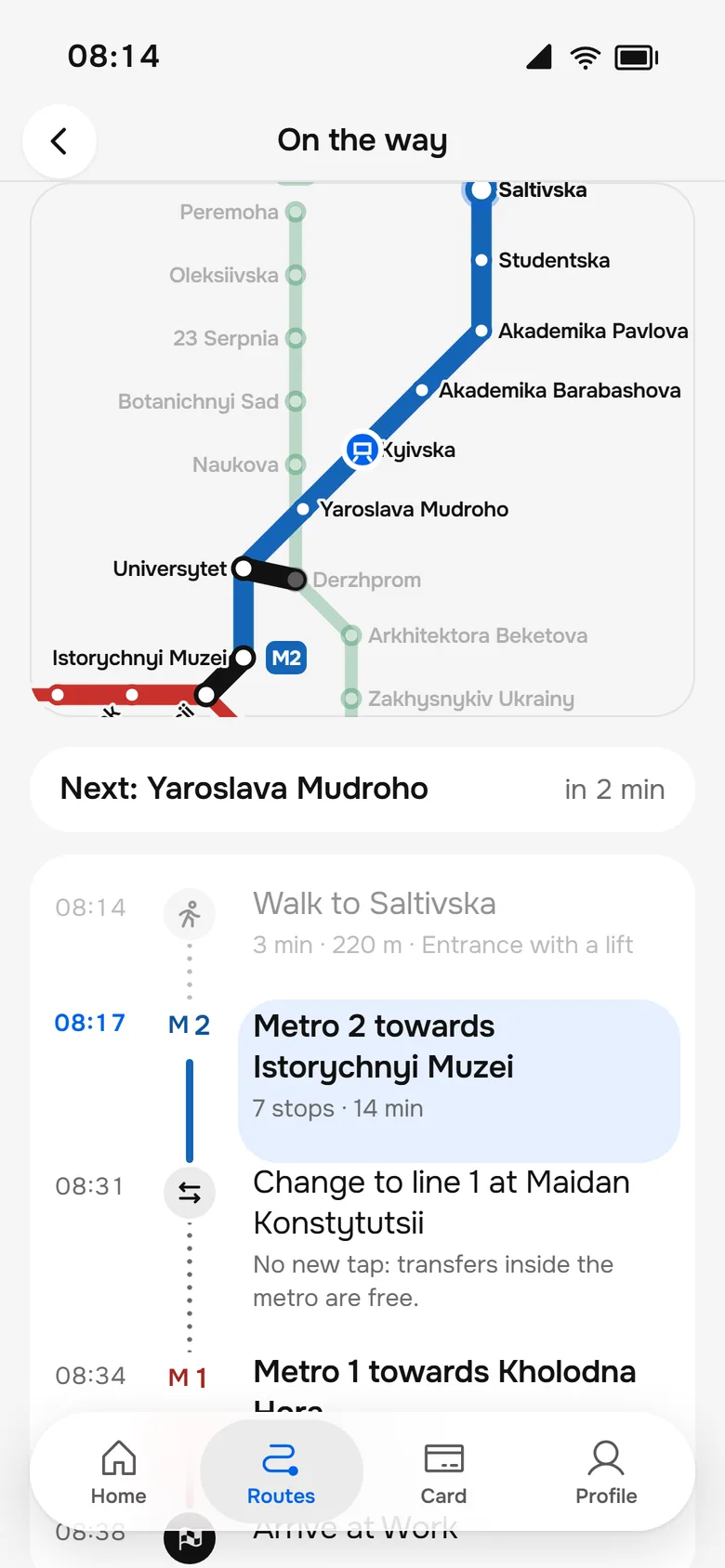

Live trip on the metro map with the next station and a transfer prompt — Live trip on the metro map

steps to pay at the turnstile, now a single tap with the phone: 5 → 1
of the riders we researched in 2020 rode with a plastic card: 68.8%
of the Kharkiv metro, with the current names after the 2022–2024 renaming: 3 lines, 30 stations
scenarios, clickable end to end, from a declined tap to a lost card: 14

Overview

In 2020 we put Kharkiv's travel card into a phone. In 2026 I made paying take one tap.

Eticket is Kharkiv's electronic travel card for the metro, trams, trolleybuses and buses. You top it up, and each ride is charged at the turnstile or the validator.

In 2020 I was the product designer on a team of three, with two developers. We shipped the first Eticket app: the card in your phone, top-ups, nearby stops, route search and trip history.

In 2026 I audited our own app and redesigned it around the two moments a rider actually cares about: getting through the turnstile, and knowing when the next tram comes. I built the redesign as a working prototype with AI, with the design system in Storybook.

Three riders, three very different mornings.

Daily commuter
Same two or three routes every day.
Through the turnstile fast, and not to miss the tram.
Student with a reduced fare
Price-sensitive, rides daily.
The reduced fare to just work, and to know when it expires.
Visitor
No card, may not read Ukrainian.
A ticket in two minutes and simple directions.

The problem

Riders had four problems. Our app solved them on paper, not at the turnstile.

What riders told us in interviews, 2020

01Cash and queuesTopping up a plastic card meant a line at a terminal.
02Paper and plasticPaper tickets and cards, used once and thrown away.
03VisitorsIf you are not local, buying a ticket is hard.
04WaitingLong, unpredictable waits at stops.

What I found in our own app (audit, 2026)

01Paying took five stepsOn "Pay for Travel": pick the transport type, passengers, bags, check the total, confirm, then hold the phone to the terminal. At the turnstile, the moment with the least patience.
02Stops without arrivalsHome listed nearby stops but not when the next vehicle comes, although waiting was one of the four problems.
03Visitors could not startOnboarding asked for the number of a plastic card they don't have.
04No Apple Pay or Google PayTop-up offered a linked bank card and a custom keypad, while our research showed riders already pay by phone.
05Two places to search a routeHome and "A to B"; tabs named "Cards" and "Payments" for the same thing.

Research

We started with riders, not screens.

In 2020, before designing the first app, we interviewed Kharkiv riders and mapped a morning commute from home to work. The four problems above came from those conversations.

Key interview quotes

I have no way of knowing my card's balance, I usually need to guess.
Kharkiv rider, 2020 interview
I hate the huge queue to the ticket terminal in the morning!
Kharkiv rider, 2020 interview
I'm constantly late for work because I was fumbling with my card and cash, then spent a lot of time near the ticket terminal!
Kharkiv rider, 2020 interview
I always forget to top up my Eticket card.
Kharkiv rider, 2020 interview

Customer journey: getting to work

01 · Goal
Doing
Often late, rushing to catch transport
Pain
Trams and trolleybuses break down; walks to the metro
Feels
Late and irritable all day
02 · Route
Doing
Decides how to get to work, checks Google Maps
Pain
No schedule and no routes on the Eticket website
Feels
Doesn't know the route
03 · Transport
Doing
Waits at the trolleybus stop, changes to the metro
Pain
Can't check the card balance at the stop; crowds at the door
Feels
Struggles to get on
04 · Payment
Doing
Pays in the trolleybus and the metro
Pain
Top-up only at a terminal
Feels
Can't pay, or struggles to
05 · Service
Doing
Buys a single ticket or tops up at a terminal
Pain
Slow, difficult processes
Feels
Loses time buying and topping up

	Goal	Route	Transport	Payment	Service
Doing	Often late, rushing to catch transport	Decides how to get to work, checks Google Maps	Waits at the trolleybus stop, changes to the metro	Pays in the trolleybus and the metro	Buys a single ticket or tops up at a terminal
Pain	Trams and trolleybuses break down; walks to the metro	No schedule and no routes on the Eticket website	Can't check the card balance at the stop; crowds at the door	Top-up only at a terminal	Slow, difficult processes
Feels	Late and irritable all day	Doesn't know the route	Struggles to get on	Can't pay, or struggles to	Loses time buying and topping up

Who we designed for

•Riders who use public transport and a smartphone every day, mostly students and office workers.
•68.8% of them rode with a plastic card: the green Eticket or the student travel card.
•Card and phone payments were common next to cash; the metro and buses were used most.

68.8%

of the riders we researched rode with a plastic card

The priority we set in 2020: easy payment and top-up, no cash and no paper tickets; see the travel balance; pay by smartphone; link a bank card; move money to another Eticket card; track transport, see schedules, find the nearest stops and build a route from A to B.

The original 2020 research slides

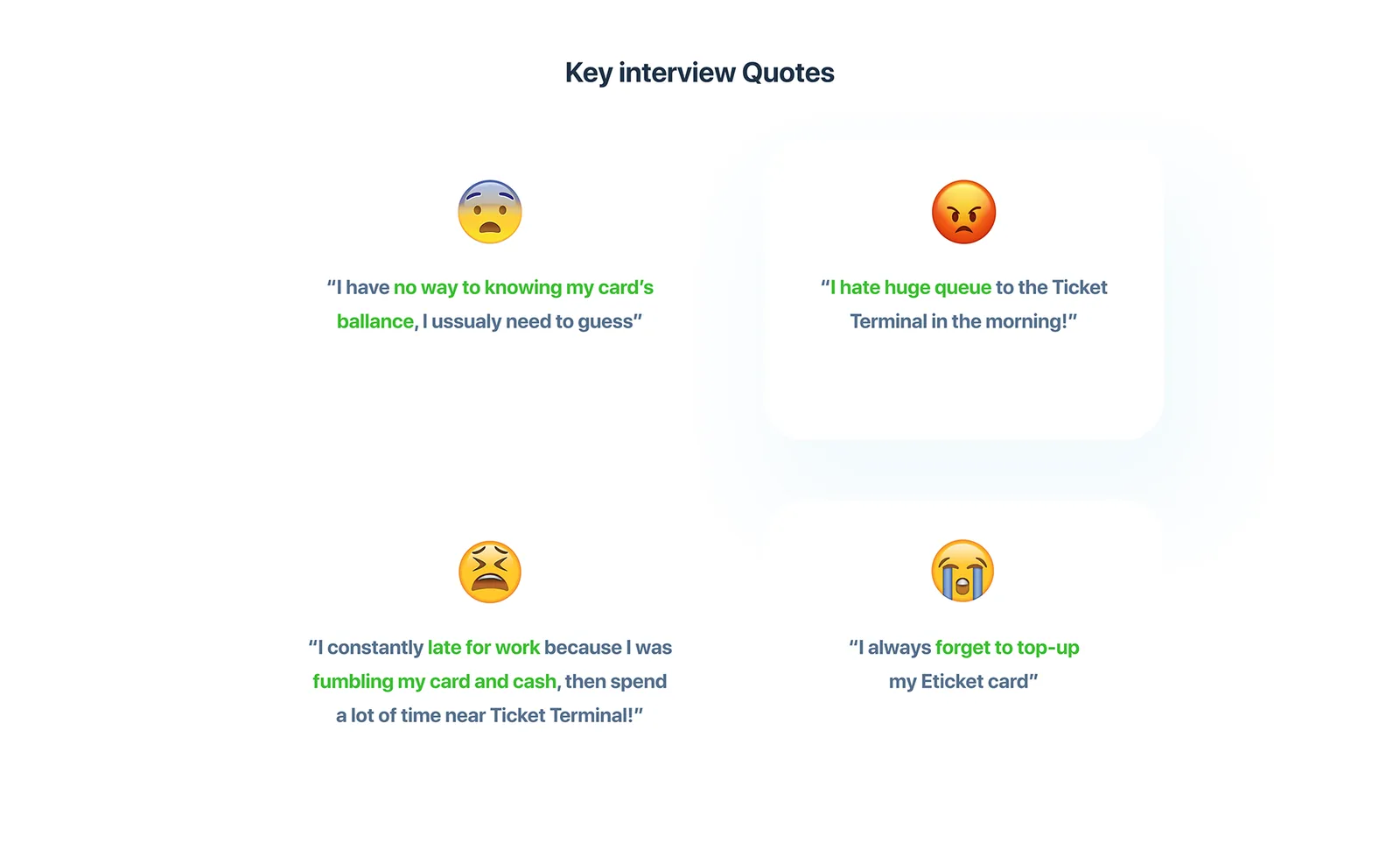

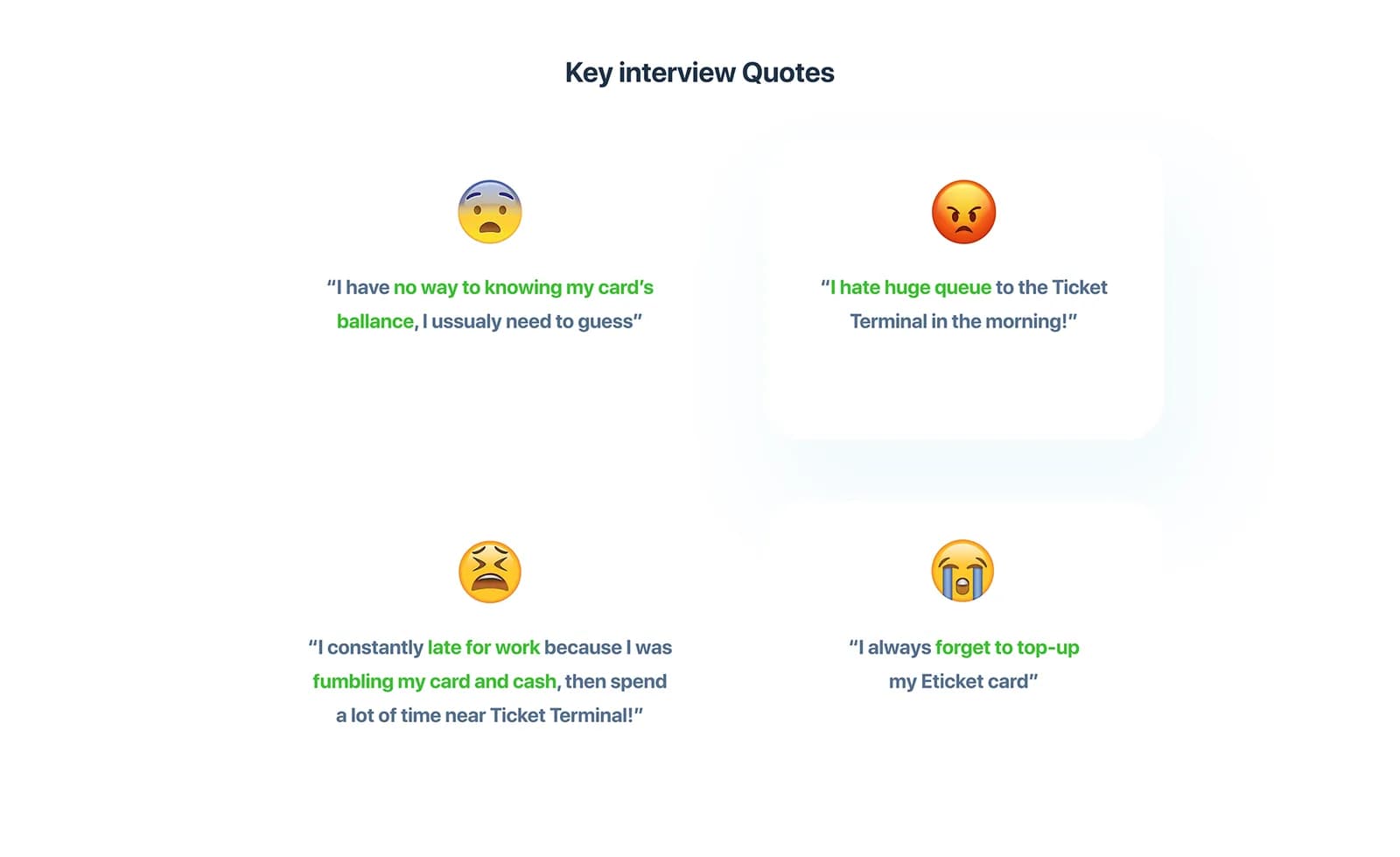

Original 2020 slide with the key interview quotes from Kharkiv riders — Key interview quotes, 2020

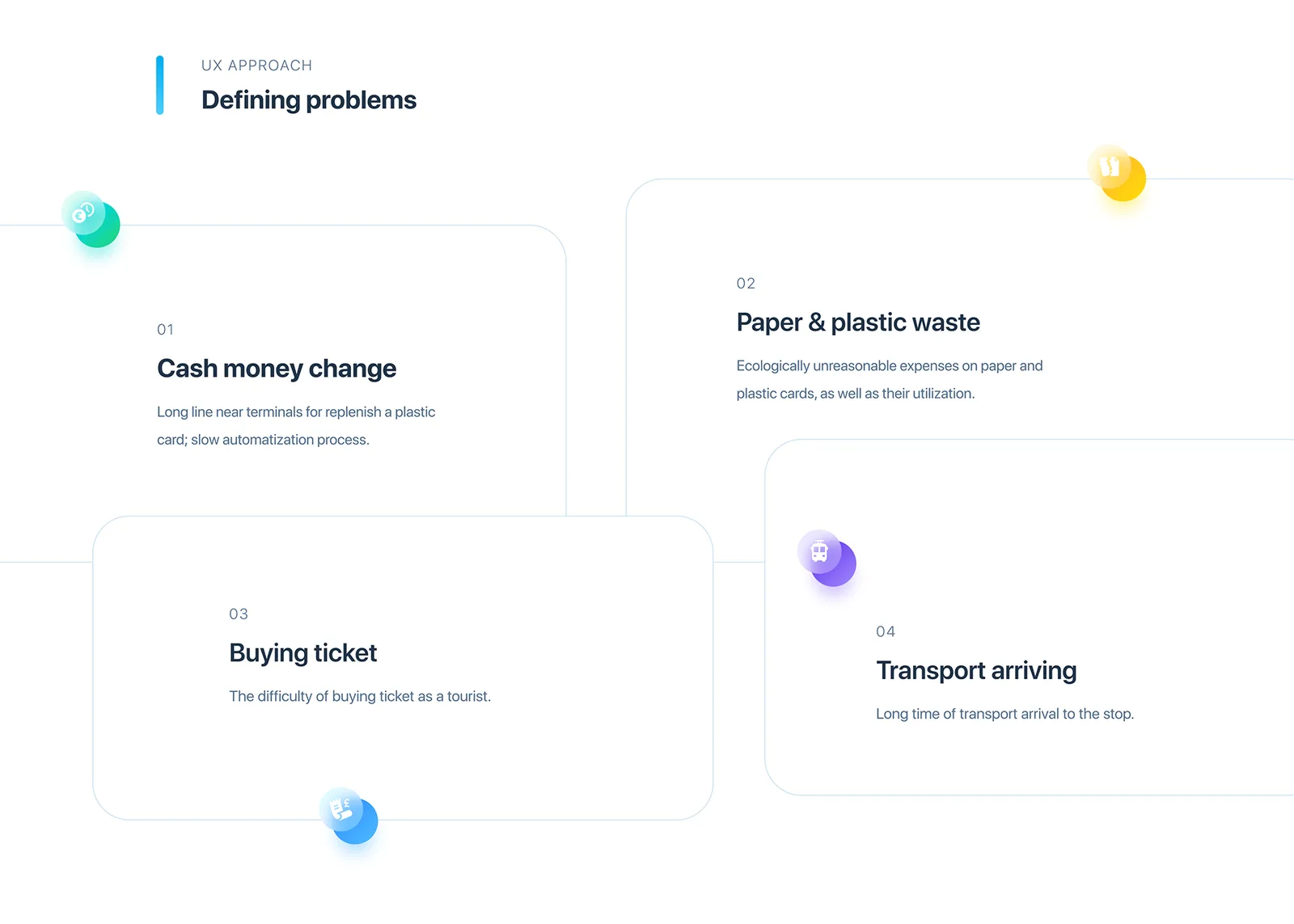

Original 2020 slide defining the four rider problems: cash and queues, paper and plastic, visitors, waiting — Defining the problems, 2020

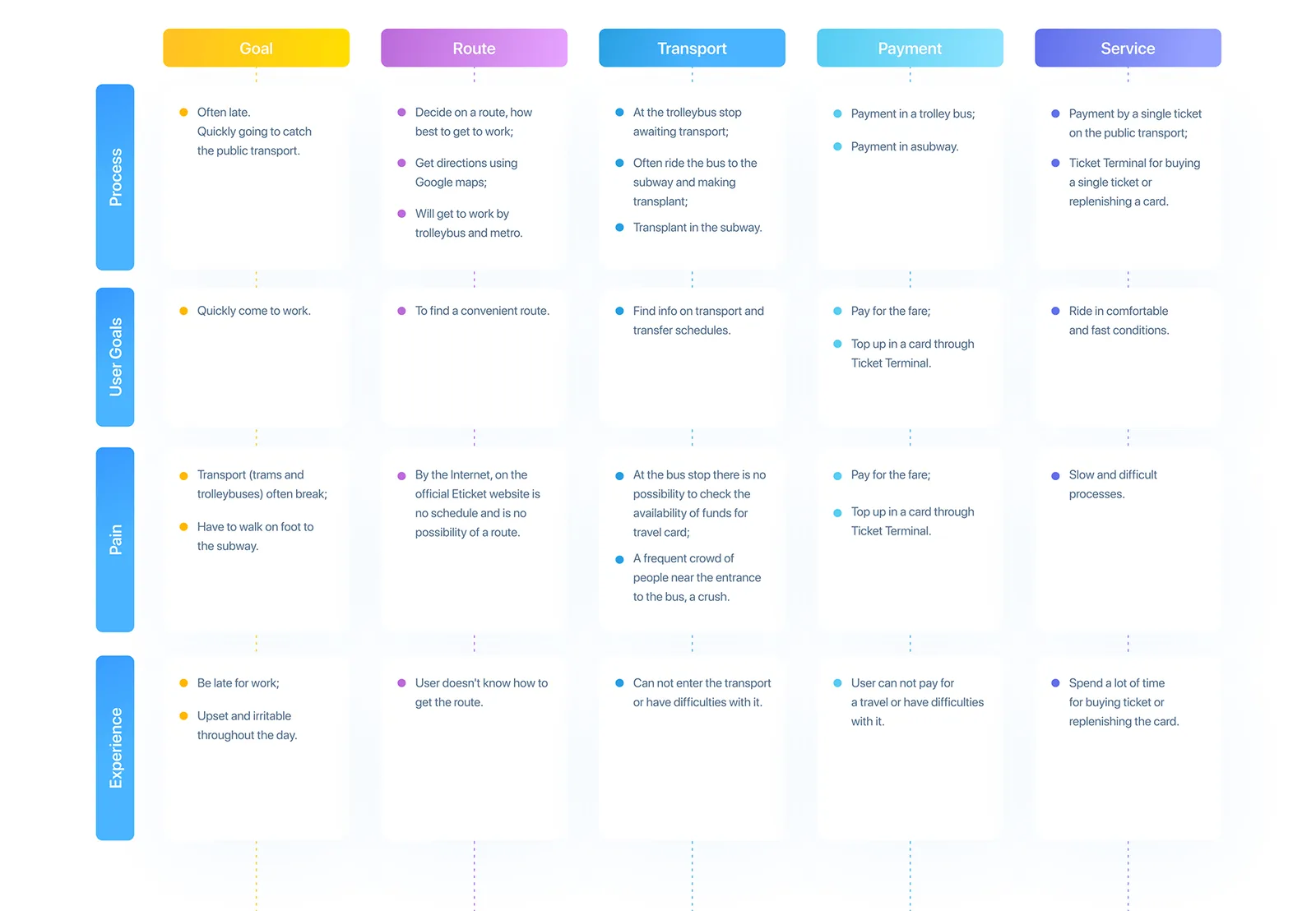

Original 2020 customer journey map of a morning commute to work — Customer journey map, 2020

In 2026 I went back to these findings and audited our shipped app against them, screen by screen.

Goals

What the redesign has to do, for riders and for the city.

For riders

01Pay in one tap, even offline, without unlocking the phone.
02See when the next metro, tram or bus comes, right on Home.
03Never get stuck at the turnstile with no balance.
04Ride as a visitor without an account or a plastic card.

For the city and the operator

01Fewer paper tickets and shorter lines at top-up terminals.
02More rides paid digitally.
03Higher satisfaction through predictable arrivals.

Launch targets, to set with the operator

Share of rides paid by phone: Target: 60% in the first year
Declined taps per 1,000 rides: Target: down by half
Top-ups in the app vs terminals: Target: 70% in the app
Visitor time from install to first ride: Target: under 2 minutes

Four rules that decided every screen.

01
The turnstile moment is sacred
Nothing between the person and the gate.
02
Arrivals, not stops
A stop is only useful with the time of the next vehicle.
03
Money is visible
Balance, fare and trips left, one glance away.
04
Works for someone who just arrived
English, no account, no card.

Flows

Eight flows, mapped before a screen was drawn.

Onboarding, paying for a ride, cards and top-up, nearby stops and live arrivals, route from A to B, the visitor, trips and account, and problems and special cases. Yellow is a step, blue a decision, green a start or an end.

Open the Miro board

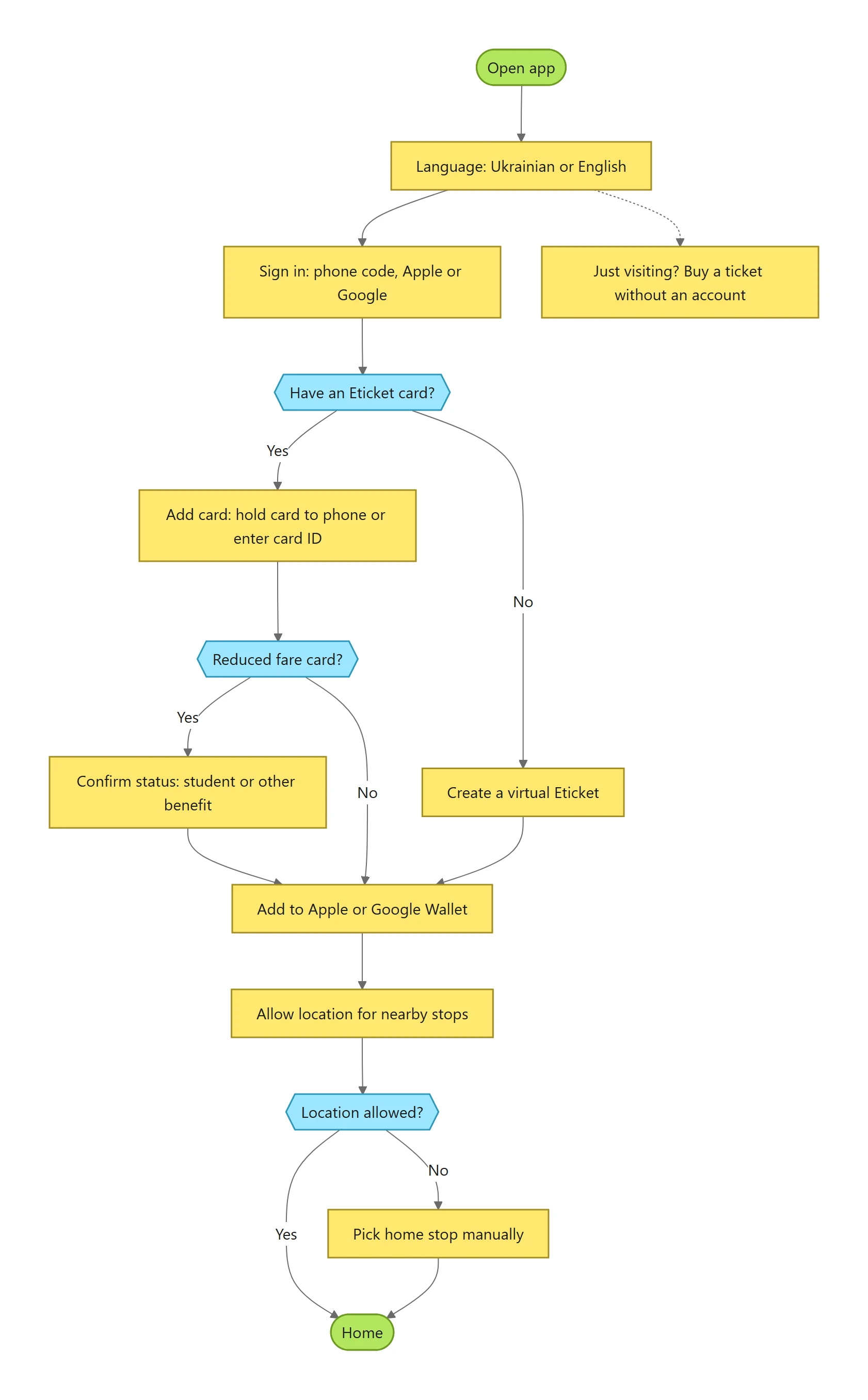

Onboarding flow: language, sign in, card or virtual card, reduced fare check, Wallet, location permission and home stop, then Home — 1. OnboardingMiro

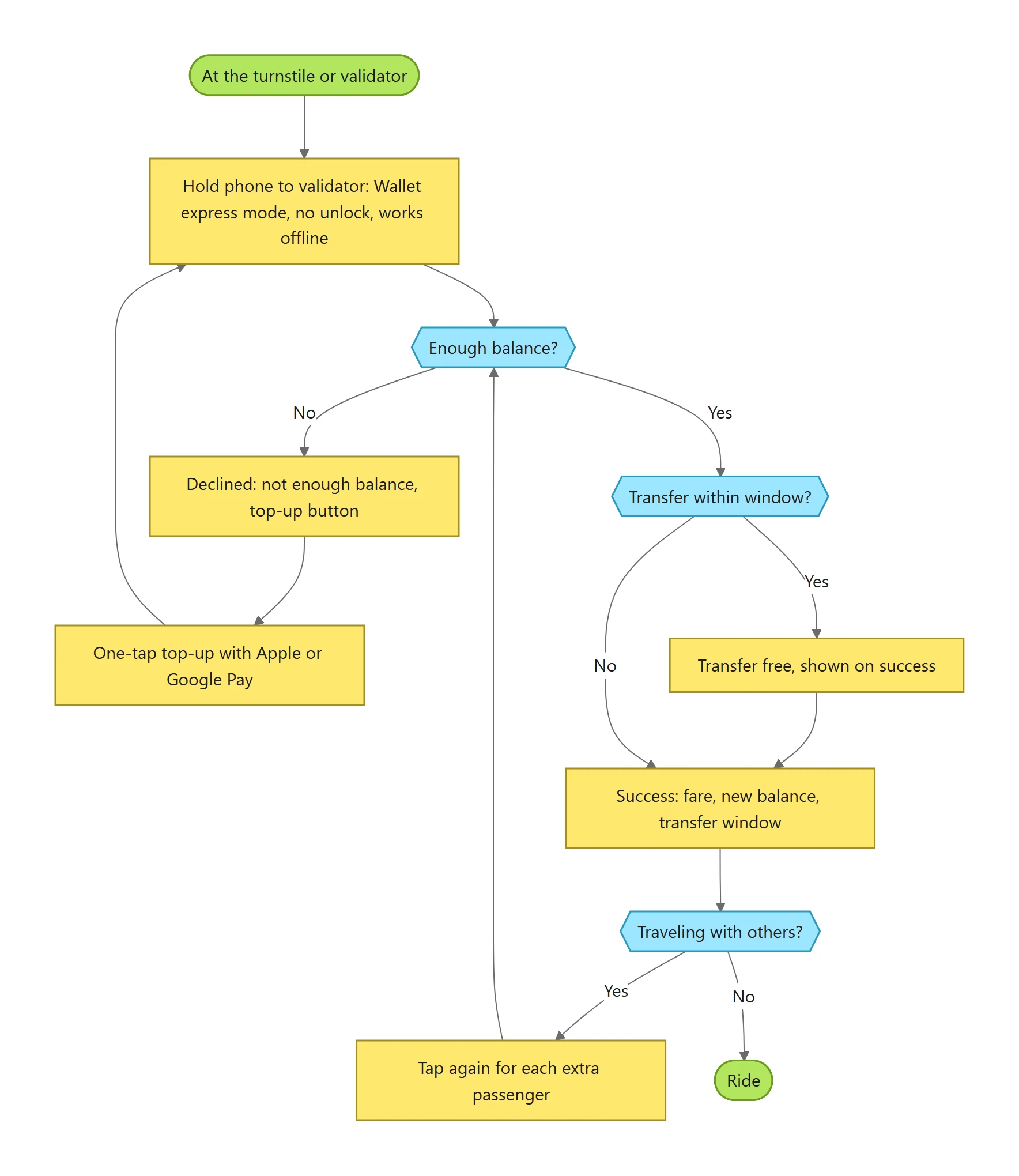

Pay flow: hold phone to the validator, balance check with a declined branch and one-tap top-up, transfer window, success, extra passengers — 2. Pay for a rideMiro

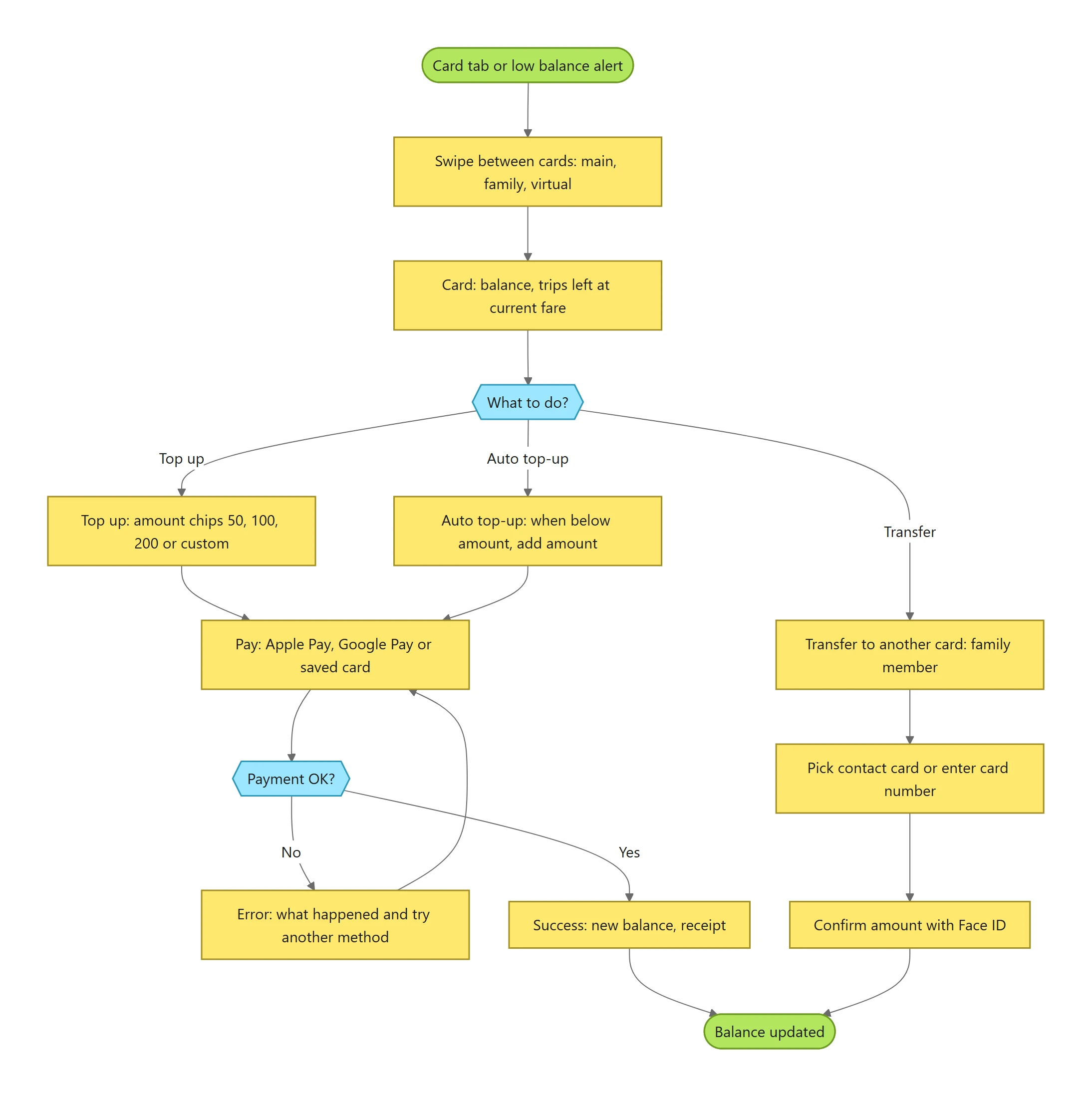

Cards flow: swipe between cards, top up with amount chips and Apple or Google Pay, auto top-up, transfer to another card with Face ID — 3. Cards, top-up, auto top-up and transferMiro

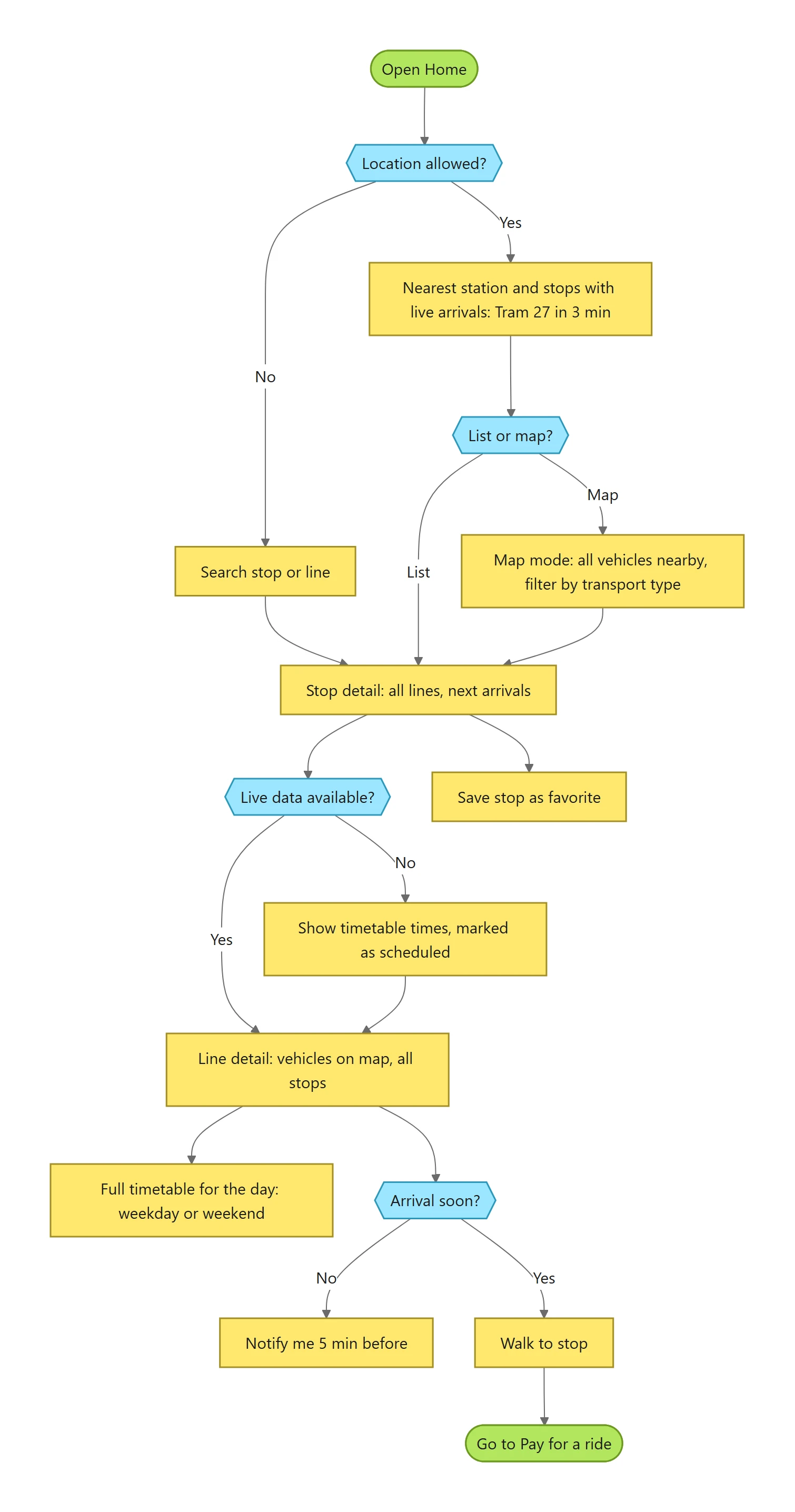

Nearby flow: Home with live arrivals, list or map, stop detail, live data or scheduled times, line detail, timetable, notify me, favorites — 4. Nearby, live arrivals, map and timetableMiro

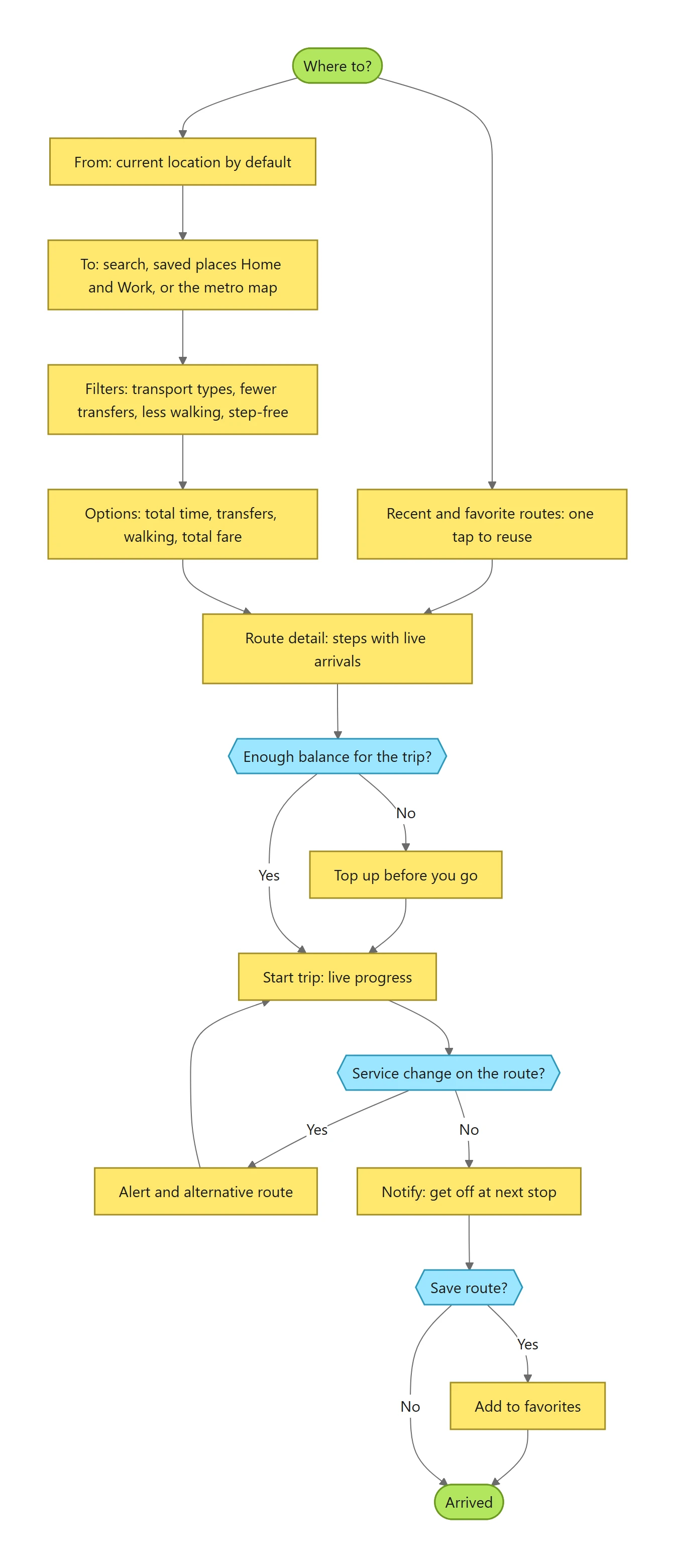

Route flow: where to, from and to, filters, options with the total fare, route detail, balance check and top-up, live trip, service change alert, save route — 5. Route from A to BMiro

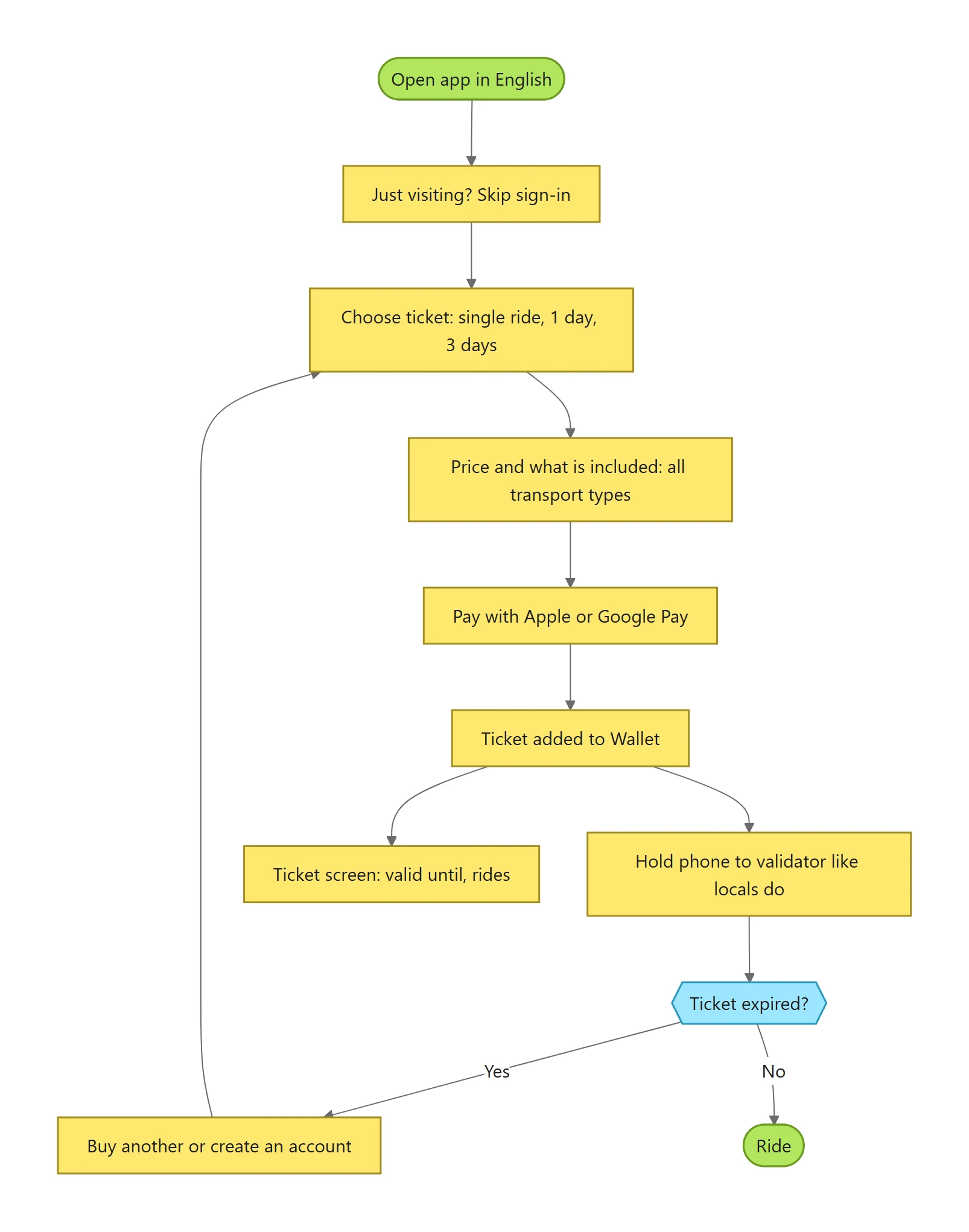

Visitor flow: skip sign-in, choose a ticket, pay with Apple or Google Pay, ticket in Wallet, hold to the validator, expired branch — 6. Visitor: ride without a cardMiro

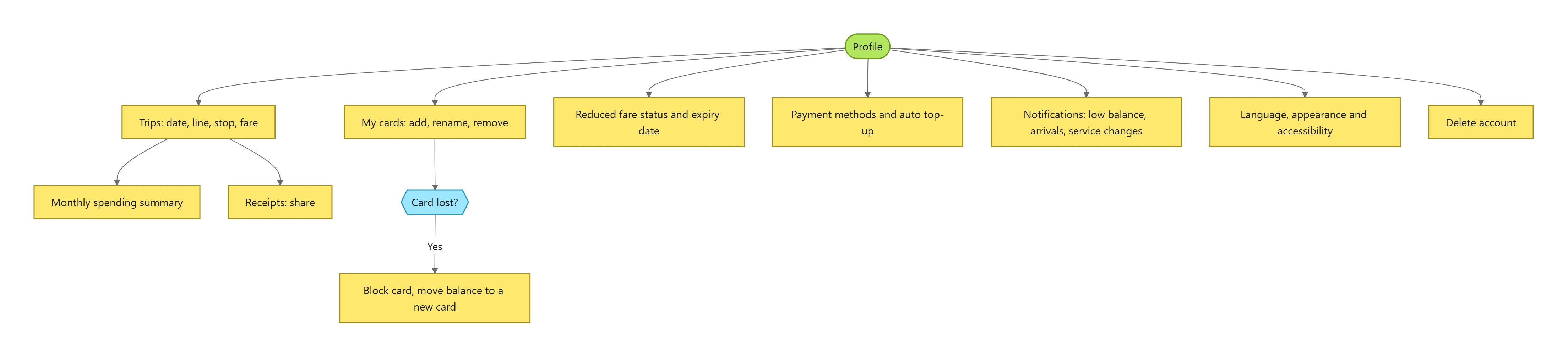

7. Trips, receipts and accountMiro

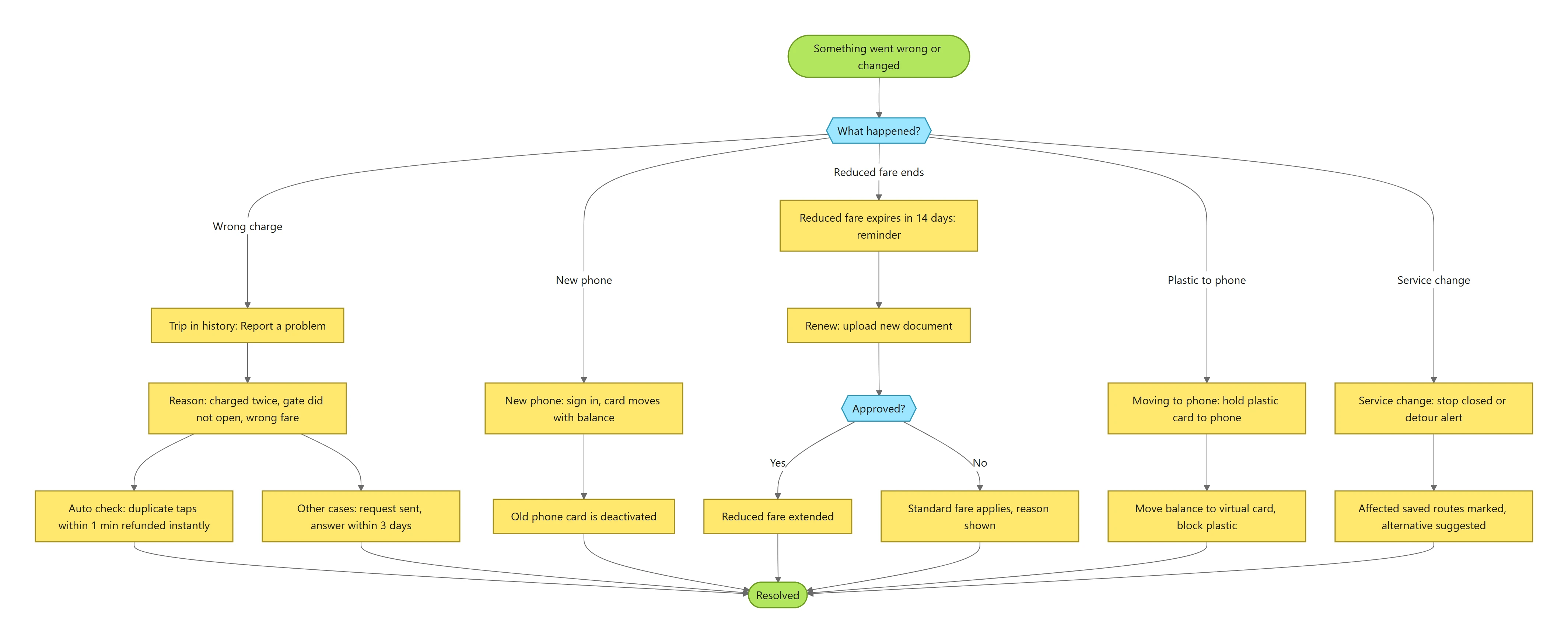

Special cases flow: wrong charge with automatic refund, new phone, reduced fare renewal, plastic card to phone, service change — 8. Problems and special casesMiro

Before and after

Every finding, next to what replaced it.

Finding 01

Five steps to pay

Hold the phone near the reader and it is done. The result screen shows Paid or Declined, and a decline carries the top-up right there.

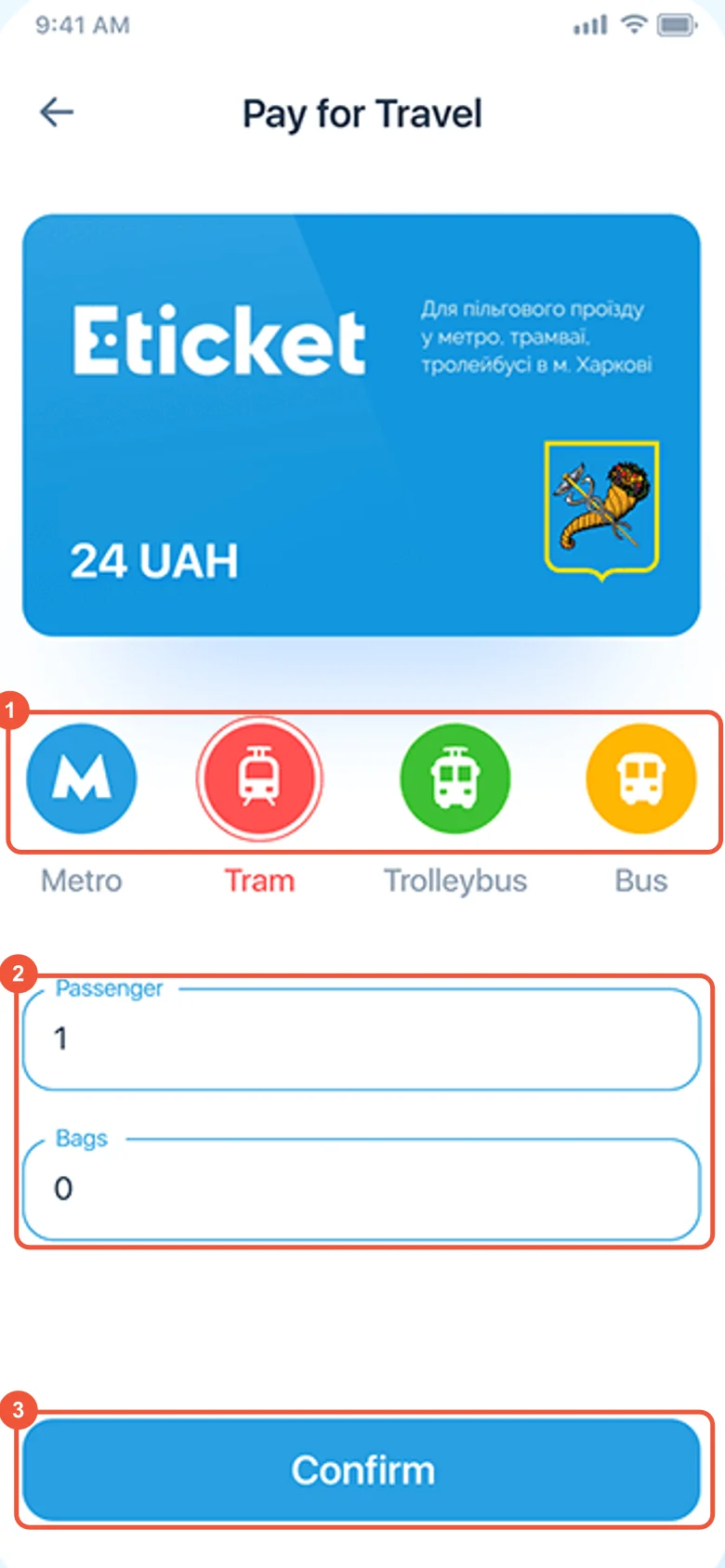

Our 2020 Pay for Travel screen: transport type, passengers, bags and a Confirm button, marked — ① pick a transport ② passengers and bags ③ confirm, then tap

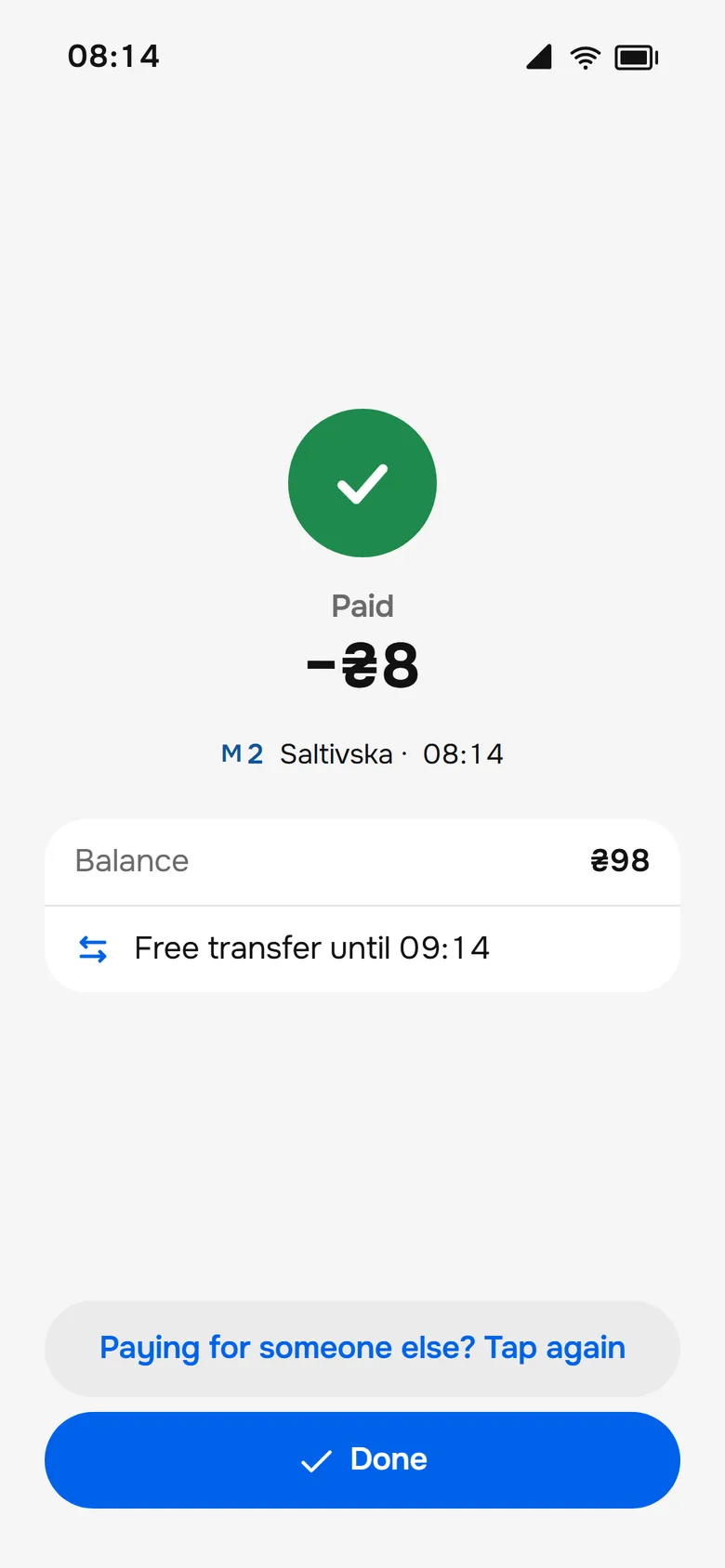

The 2026 tap result: Paid, fare, new balance and a free transfer window — Paid, with the transfer window

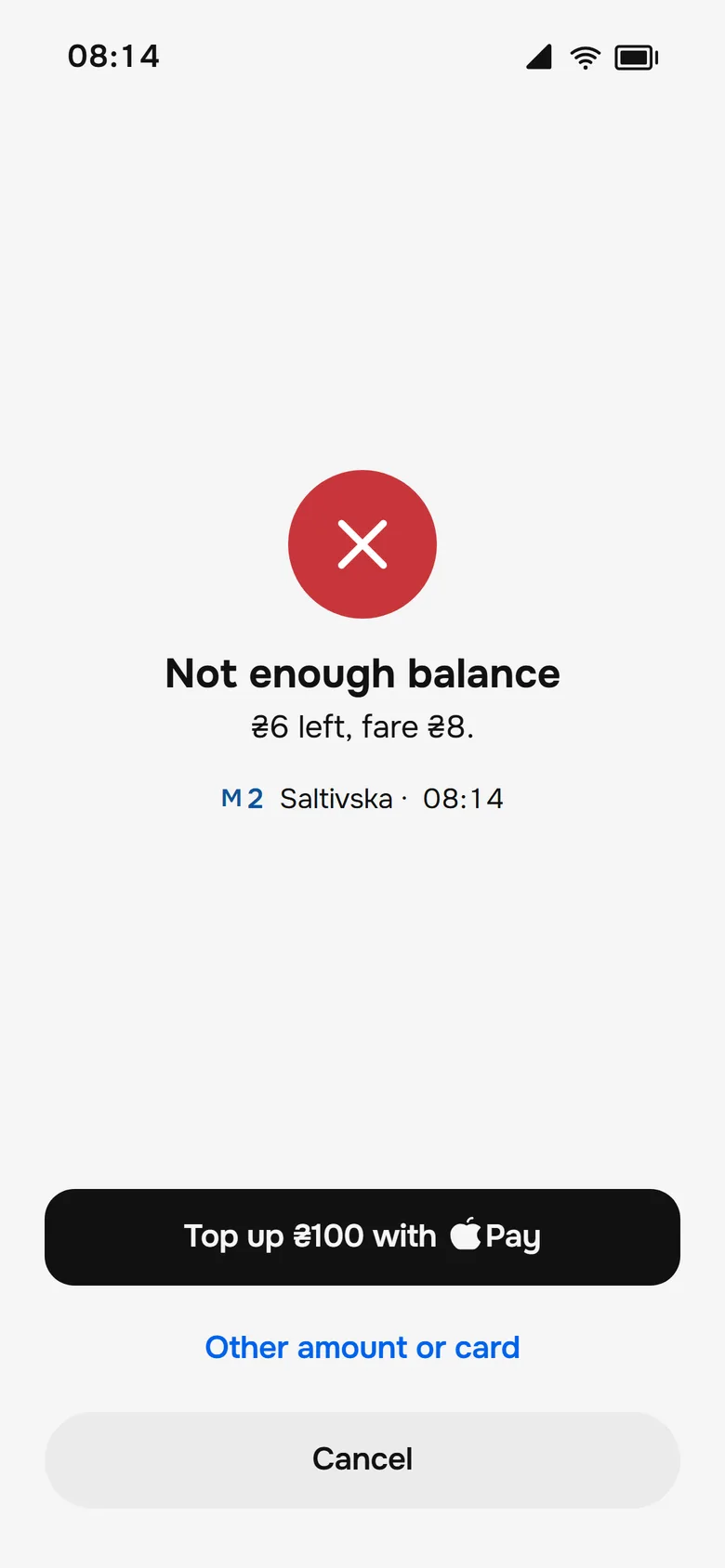

The 2026 declined tap: balance too low, with a one-tap top-up with Apple Pay — Declined: the top-up is right there

Finding 02

Stops without arrivals

Home leads with the nearest station and a live chip for every stop nearby: the next vehicle, not just the name.

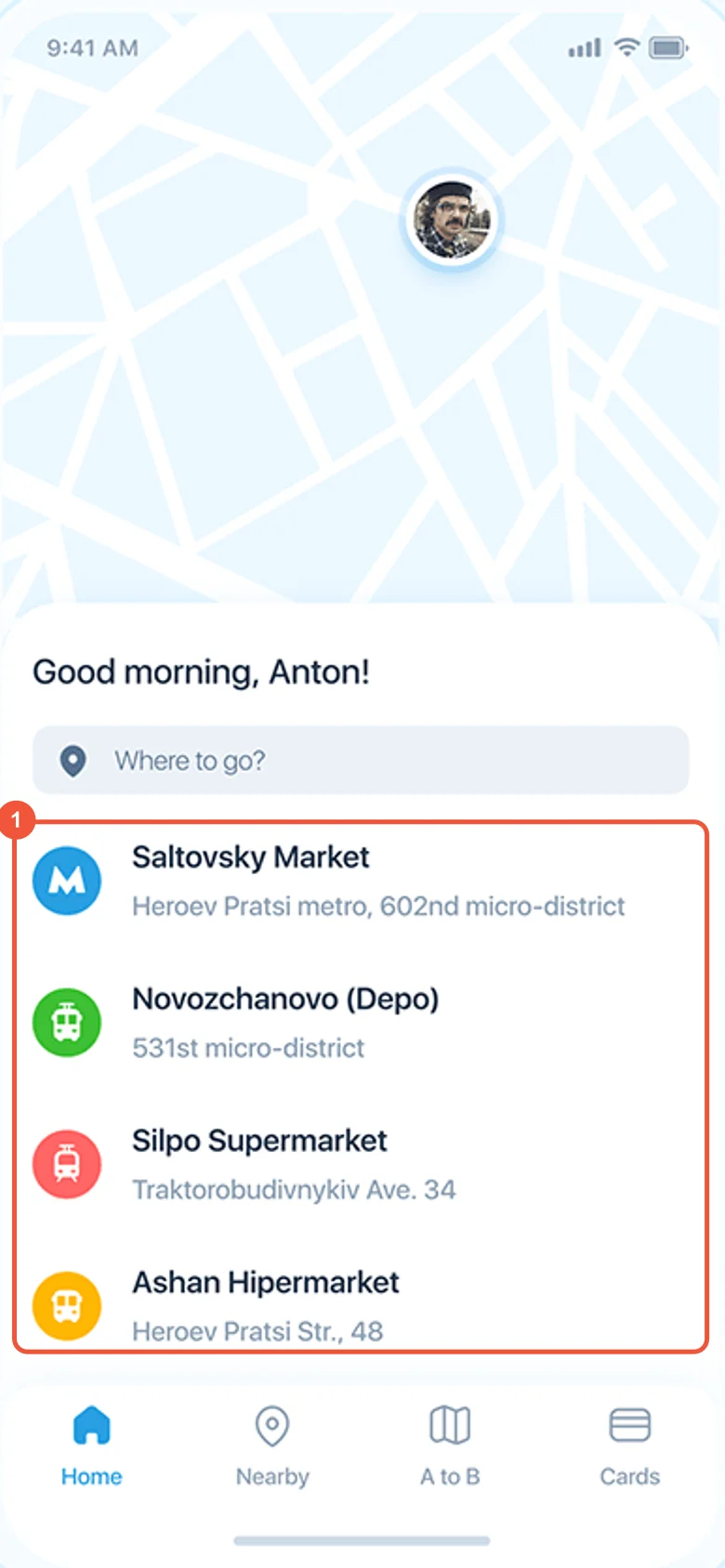

Our 2020 Home screen: a map and a list of nearby stops without arrival times, marked — ① stops, but no time of the next vehicle

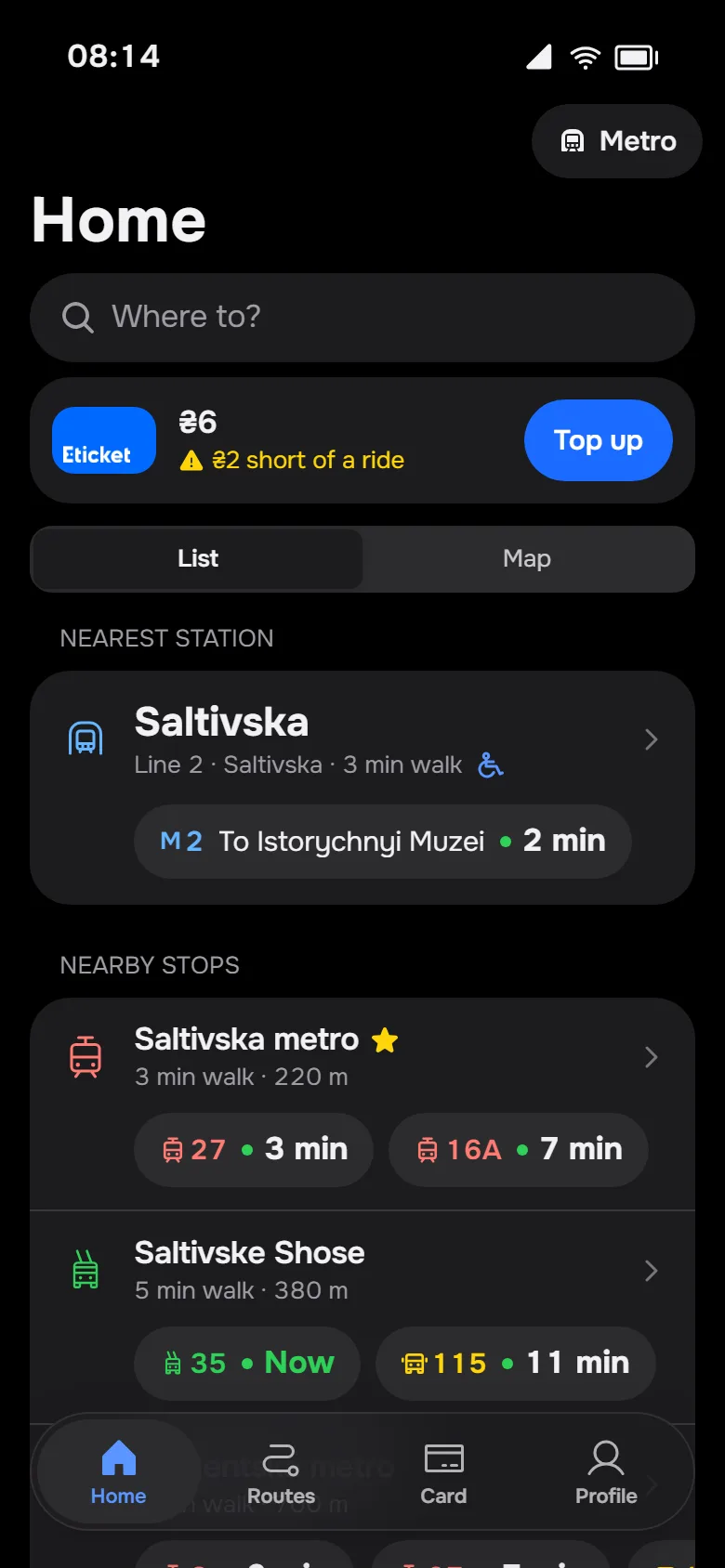

The 2026 Home: nearest station and stops with live arrival chips — Nearest station and live chips

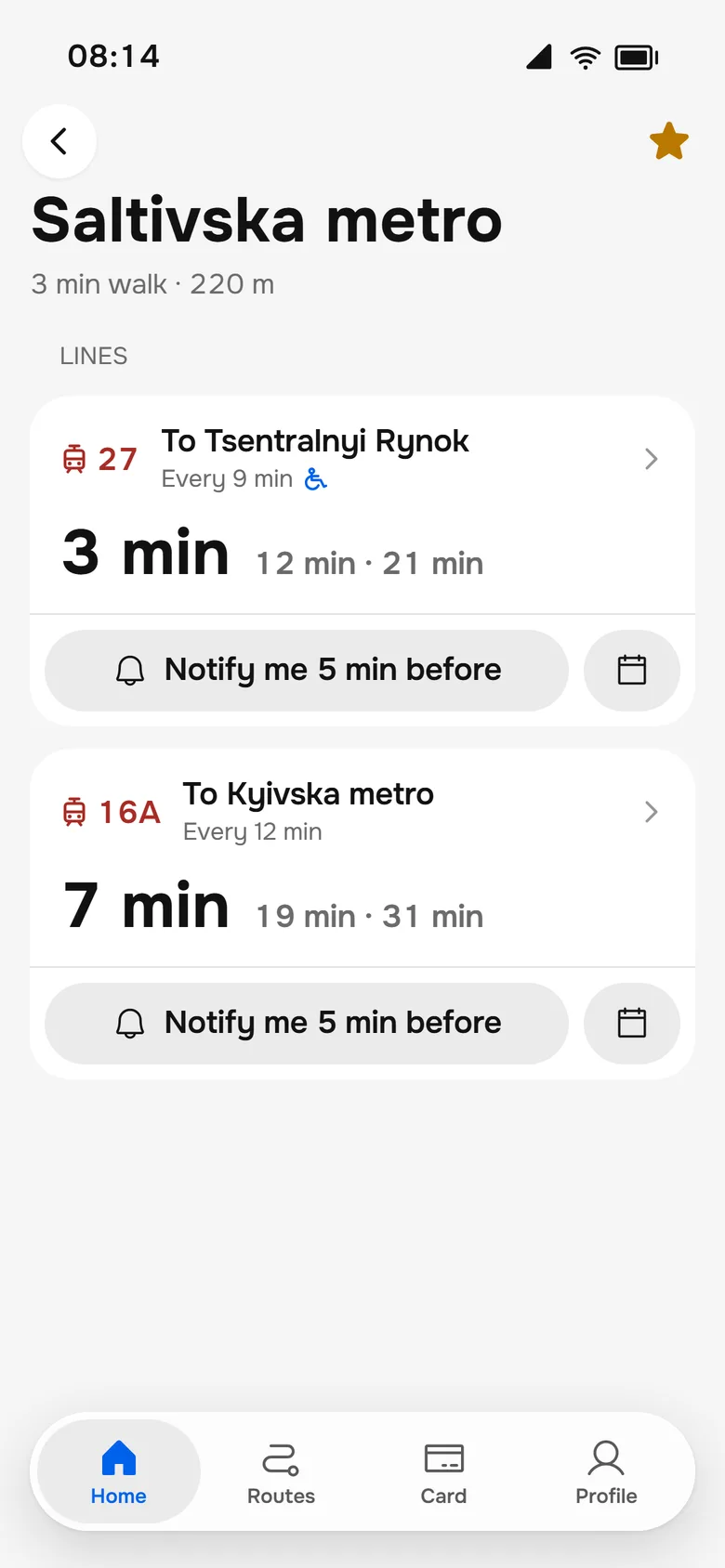

The 2026 stop detail with all lines and their next arrivals — Stop detail: every line, next arrivals

Finding 03

Onboarding needs a plastic card

Welcome offers "Just visiting? Buy a ticket", and the visitor ticket goes straight into Wallet, with no account and no card.

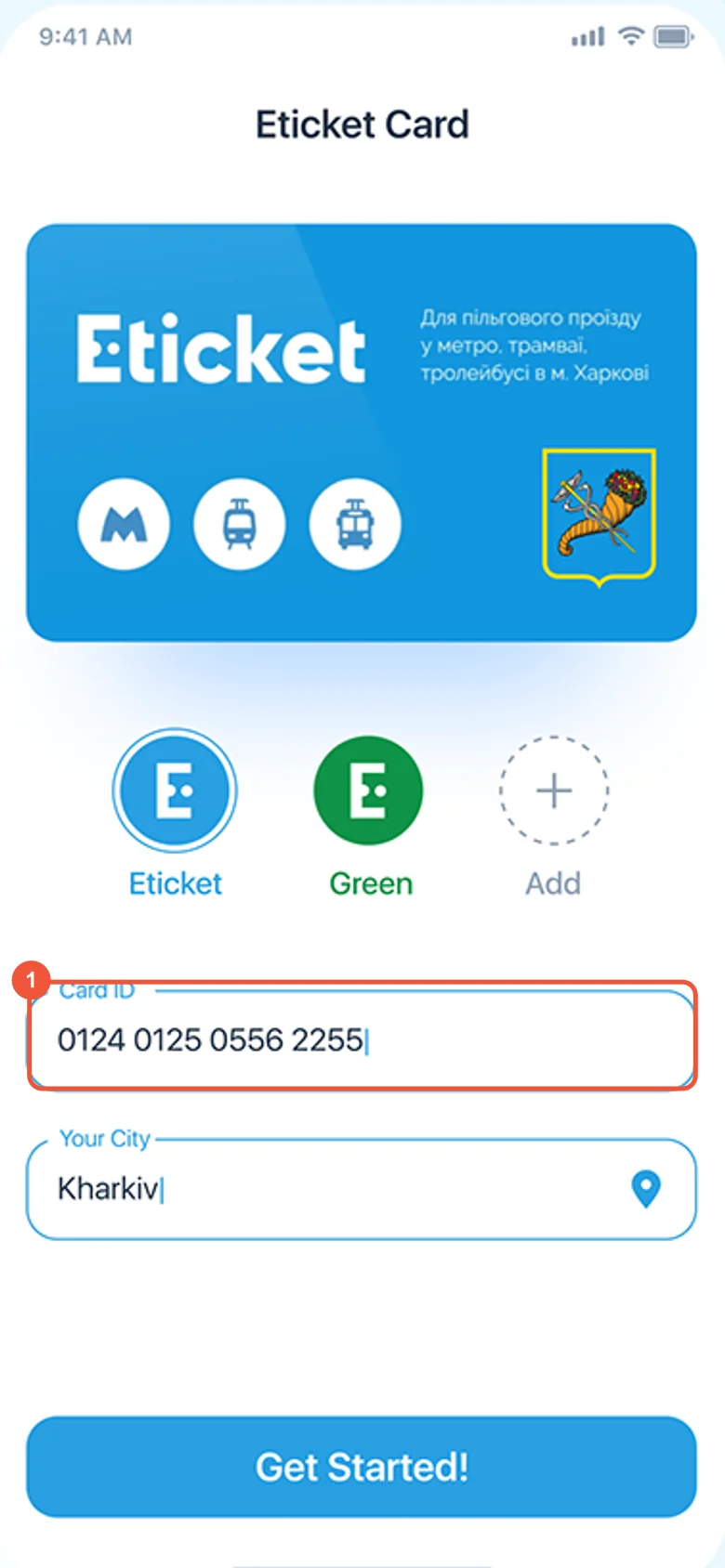

Our 2020 first screen asking for a Card ID and a city, marked — ① a card number a visitor doesn't have

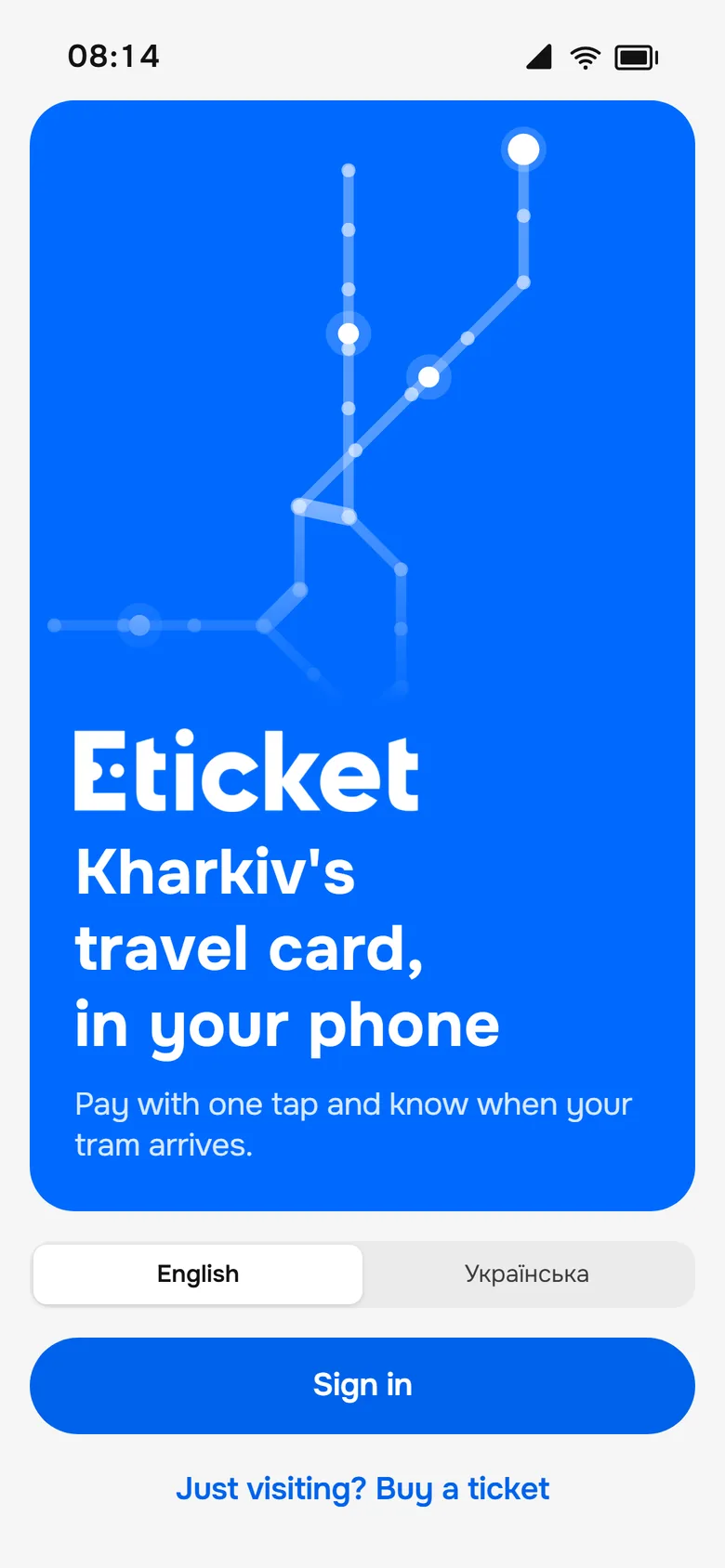

The 2026 Welcome screen with a Just visiting option to buy a ticket — "Just visiting? Buy a ticket"

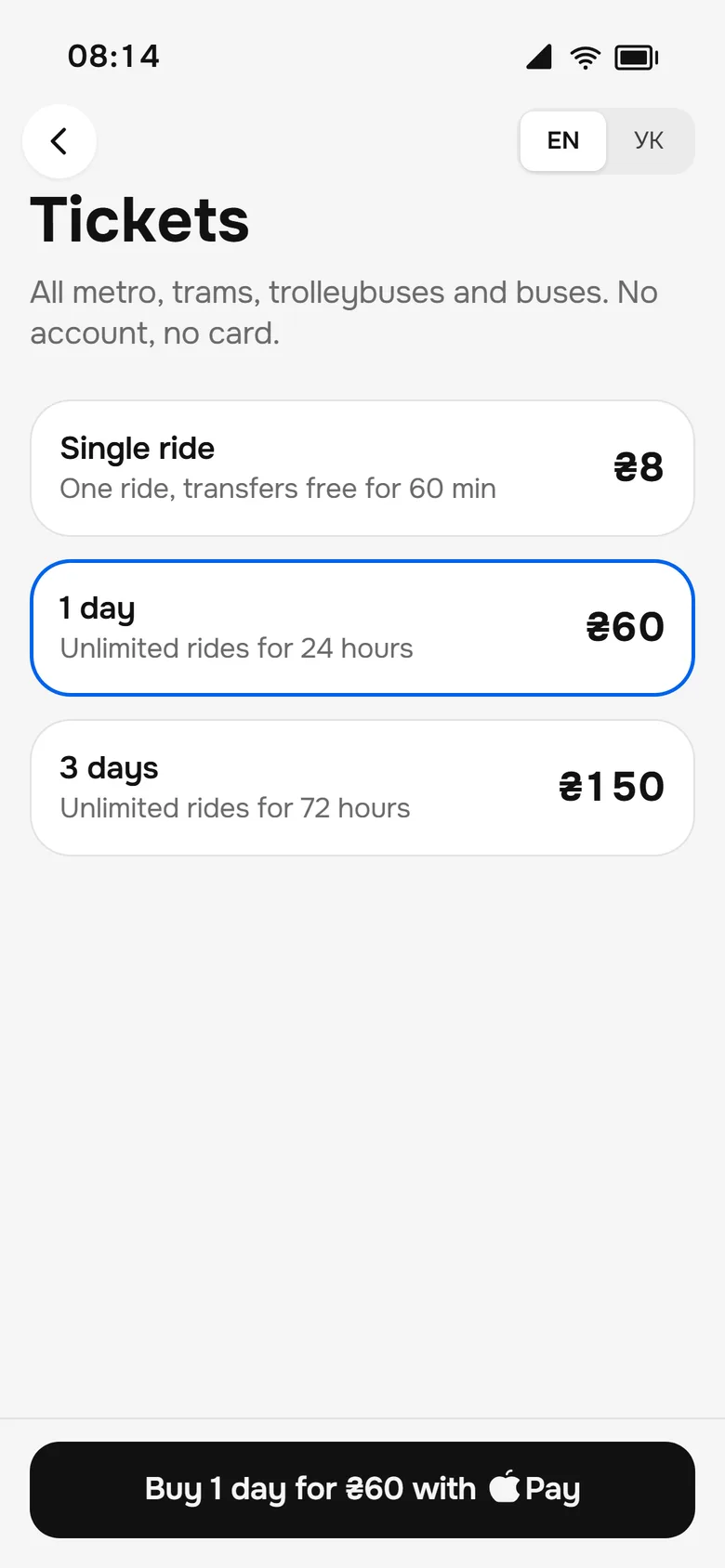

The 2026 visitor tickets: single ride, 1 day and 3 days — Single ride, 1 day, 3 days

Finding 04

Top-up with a custom keypad

Amount chips and Apple Pay replace typing on a custom keypad, so a top-up is one choice and one tap.

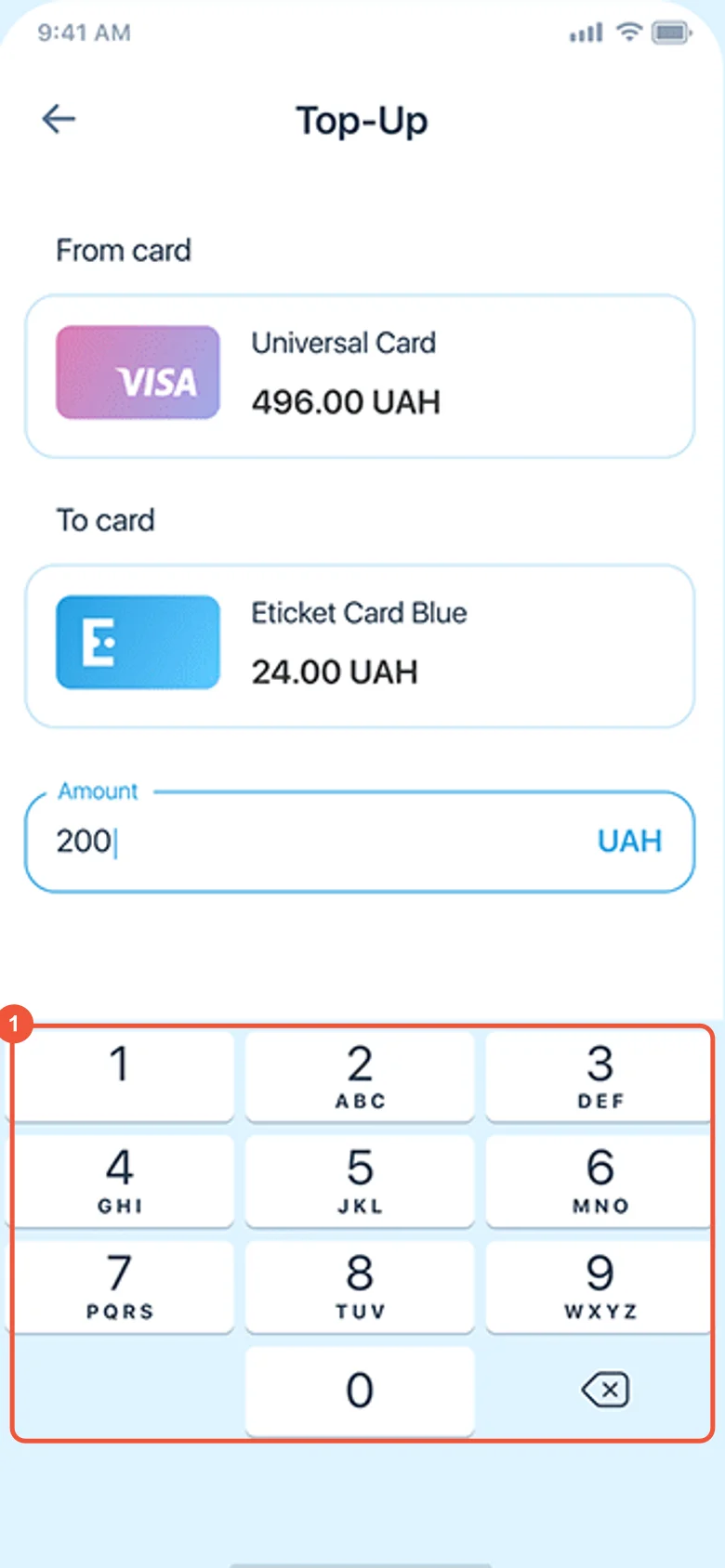

Our 2020 Top-up screen with an amount field and a custom numeric keypad, marked — ① typing an amount on a keypad

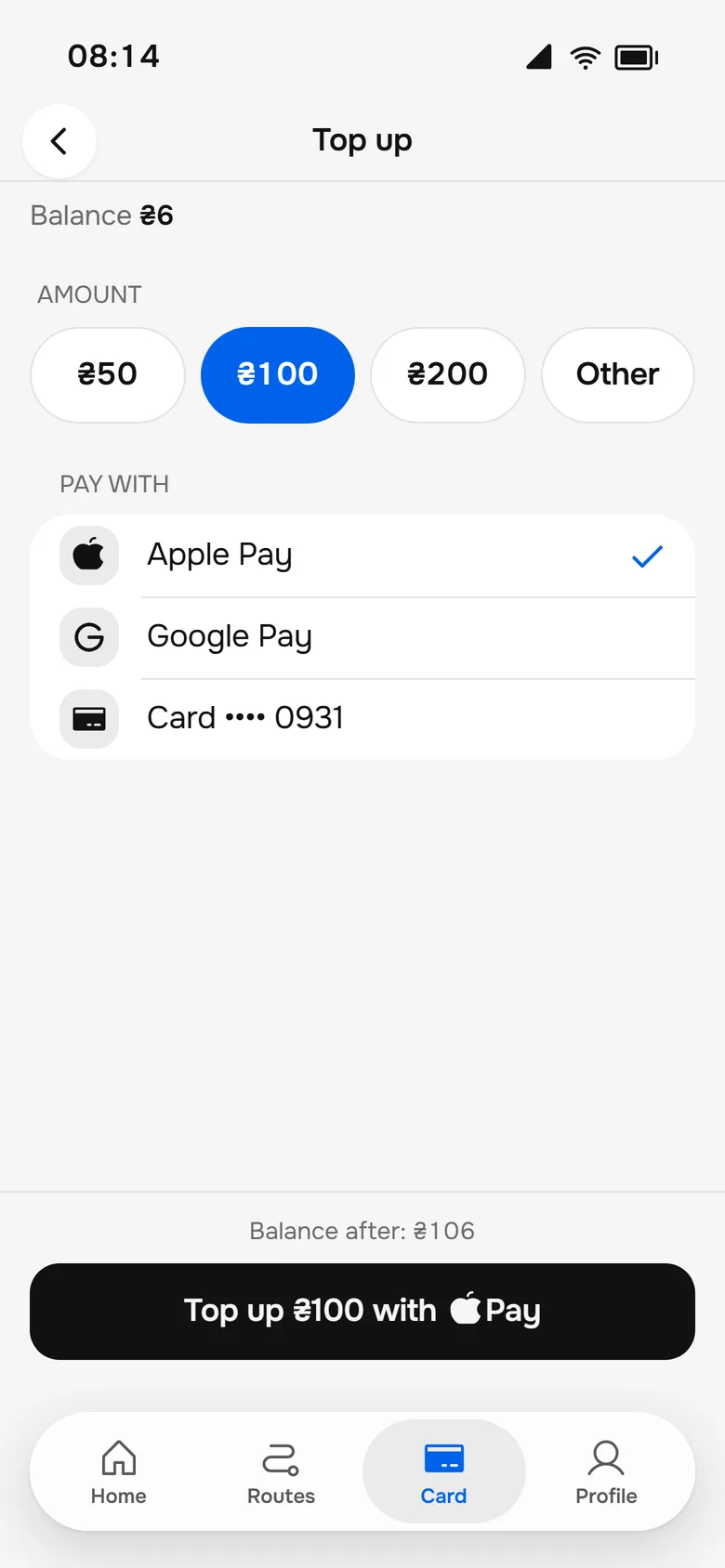

The 2026 Top-up with amount chips and Apple Pay — Amount chips and Apple Pay

Finding 05

Two places to search a route

One "Where to?" on Home opens Routes, and the options show the total fare, so the search happens in one place.

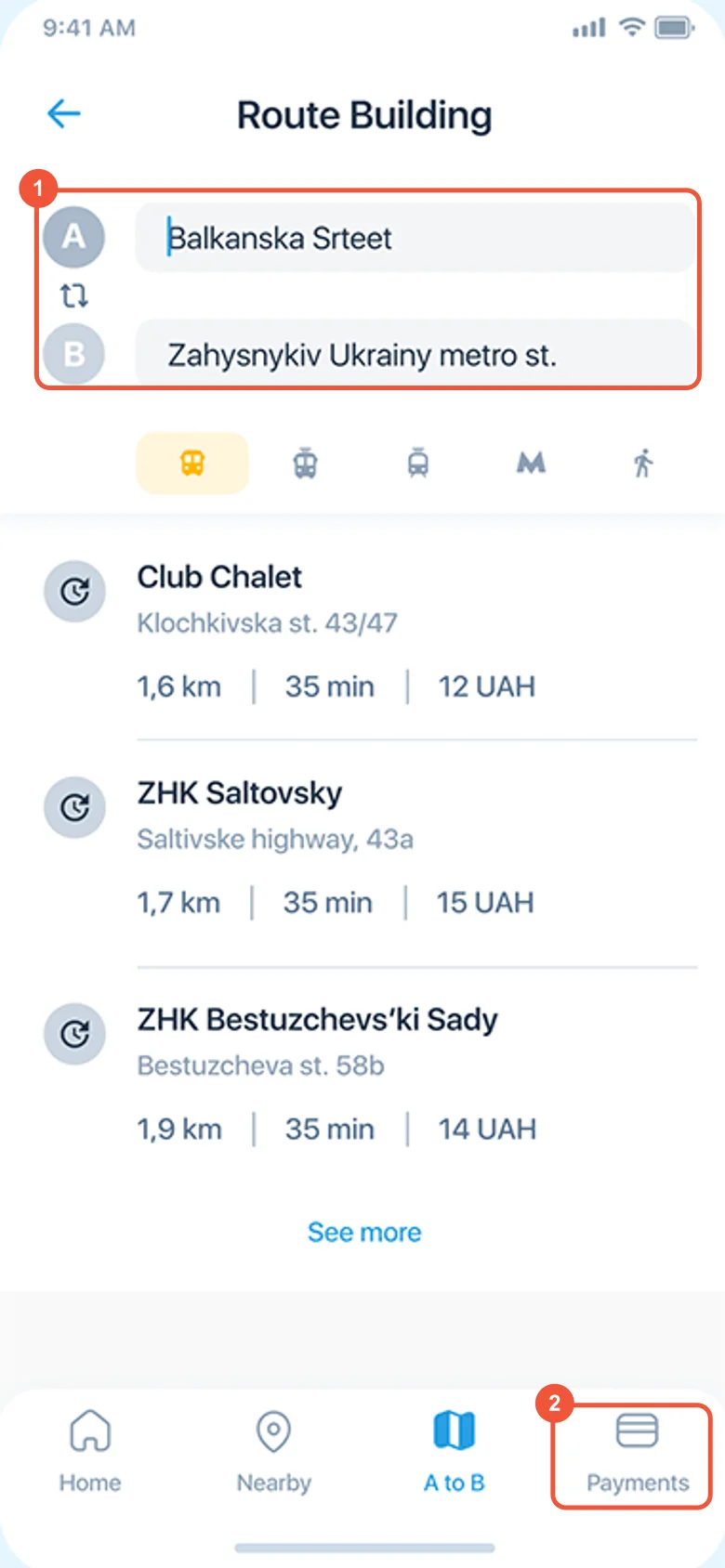

Our 2020 Route Building screen, a second search separate from Home, with a tab named Payments, marked — ① a second search ② "Payments" for what Home calls Cards

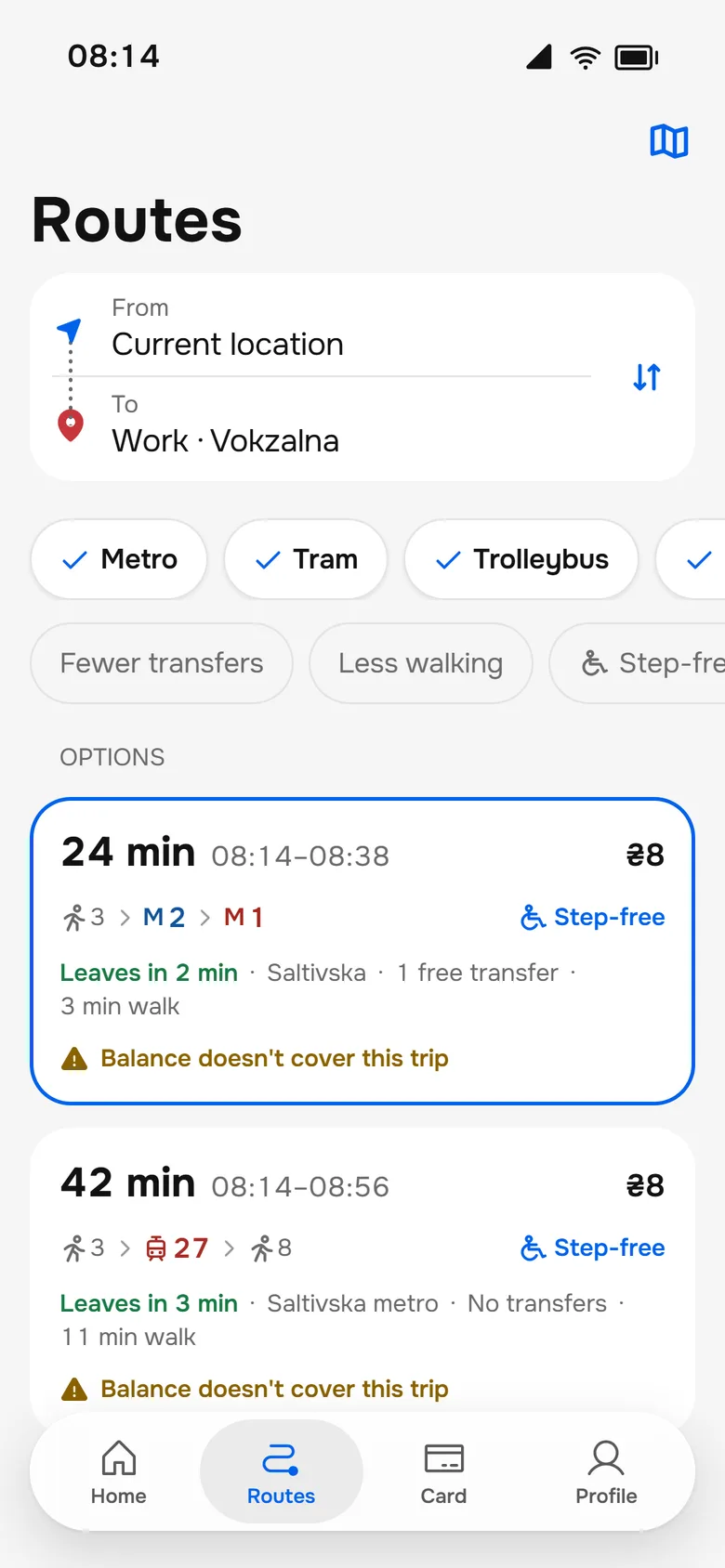

The 2026 Routes options with time, transfers, walking and the total fare — One search, options with the fare

The morning commute

The morning commute, clicked end to end.

₴6 on the card. Routes to Work: metro line 2, a transfer, line 1, 24 minutes, ₴8, and a warning that the balance doesn't cover the trip. Tap at Saltivska: declined. Top up ₴100 with Apple Pay and tap again: paid, ₴98, free transfer until 09:14. The live trip follows on the metro map: "Transfer at Istorychnyi Muzei to line 1" with no new tap, then "Vokzalna is next". At the exit, Home suggests "Tram 7 · 4 min".

Home with the low balance and the nearest station — Home, ₴6 on the card

Routes options to Work with the fare and a balance warning — Routes: 24 min, ₴8, balance too low

Declined tap with a one-tap top-up — Tap: declined, top up ₴100

Paid, ₴98 left, free transfer until 09:14 — Tap again: paid, ₴98

Live trip on the metro map with the transfer prompt — Live trip, no new tap

Eight decisions that shaped the app.

01Tap to pay through Wallet express modeNo app to open, no unlock, works offline. Premise: validators on all transport accept NFC.
02A declined tap is also the fix"₴6 left, fare ₴8" with "Top up ₴100 with Apple Pay" right there, then tap again.
03Live arrivals on HomeThe nearest metro station first, then "Tram 27 · 3 min" for each stop nearby, with "Notify me 5 min before".
04The transfer window after paying"Free transfer until 09:14" removes a common worry.
05Routes show the total fareThe balance is checked before you leave: "Your balance doesn't cover this trip".
06Visitor tickets without an accountStraight into Wallet: single ride, 1 day, 3 days.
07Auto top-up and lost-card recoverySo the balance never becomes a problem.
08Four clear tabsHome, Routes, Card, Profile. One place to search a route.

Hard states

The screens nobody asks for are the ones that build trust.

Declined tap with the fare, the balance and a one-tap top-up — Declined tap

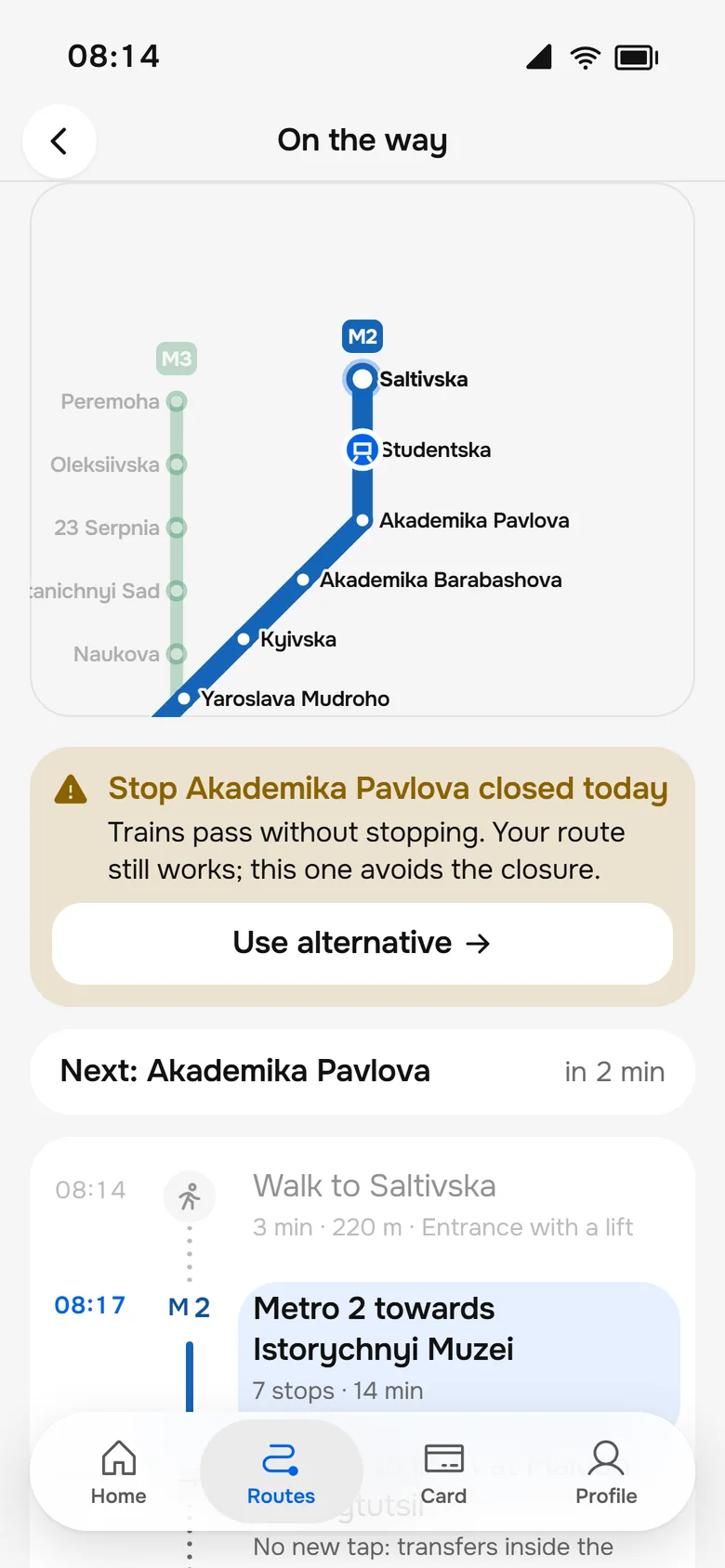

Route service change alert with an alternative route — Service change, with an alternative

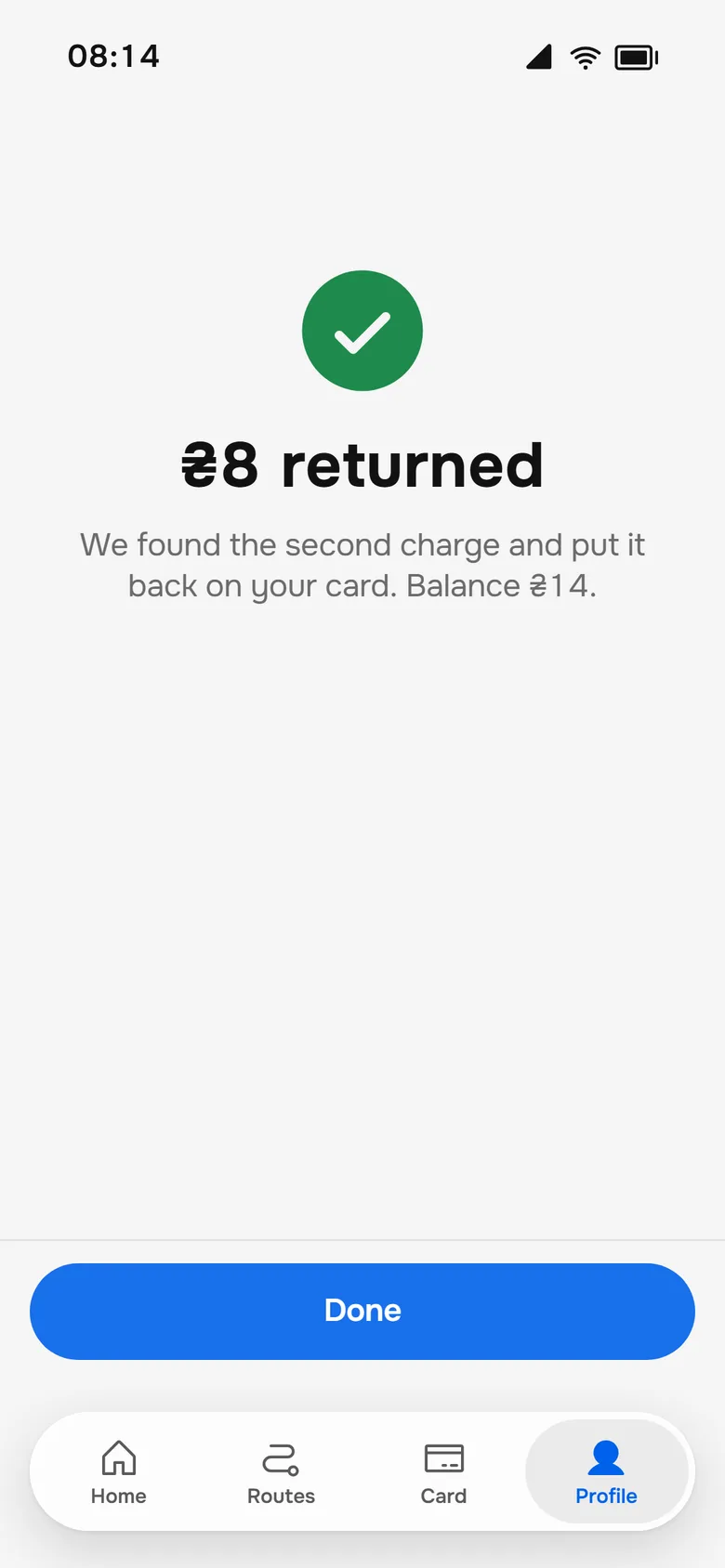

Charged twice: the duplicate is refunded instantly — Charged twice, refunded instantly

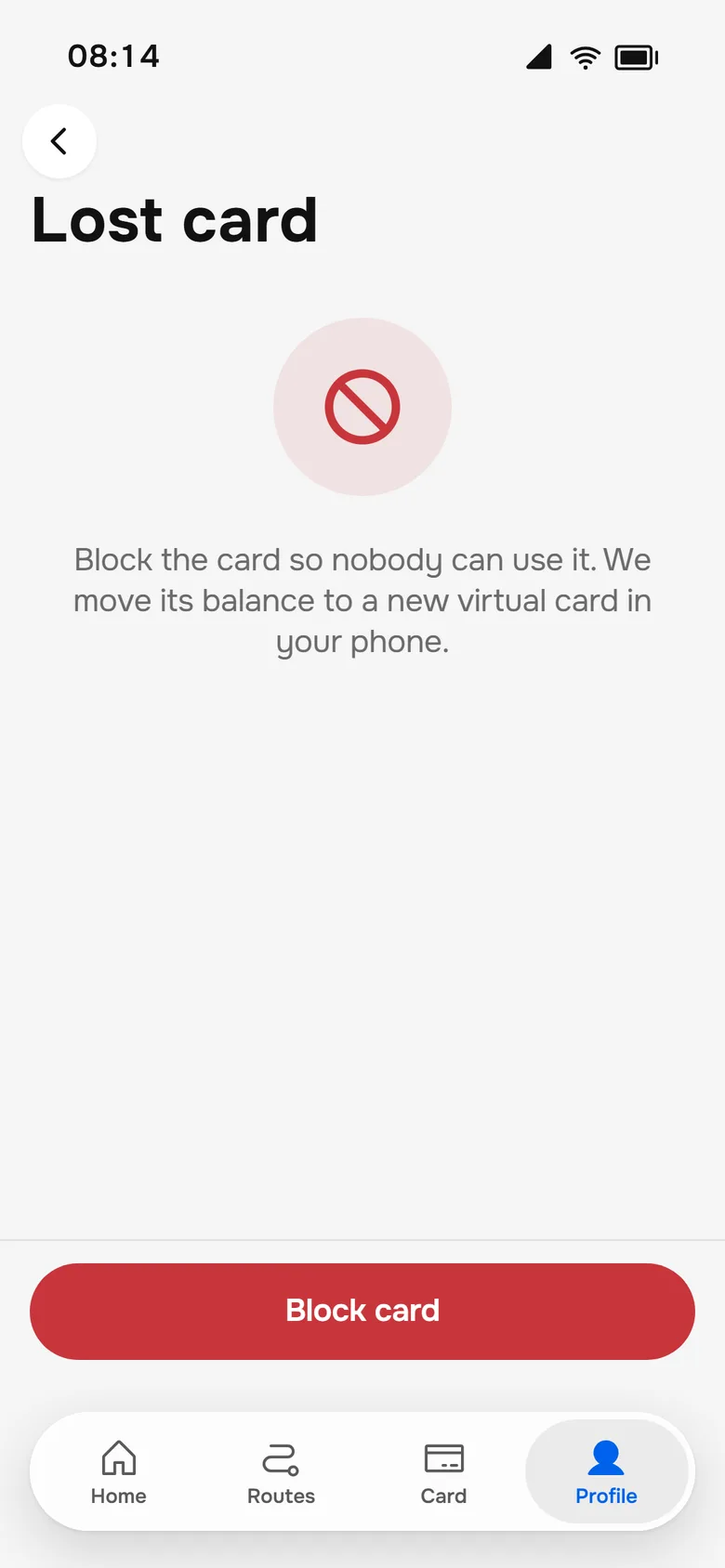

Lost card: the balance is moved to a virtual card — Lost card, balance moved to a virtual card

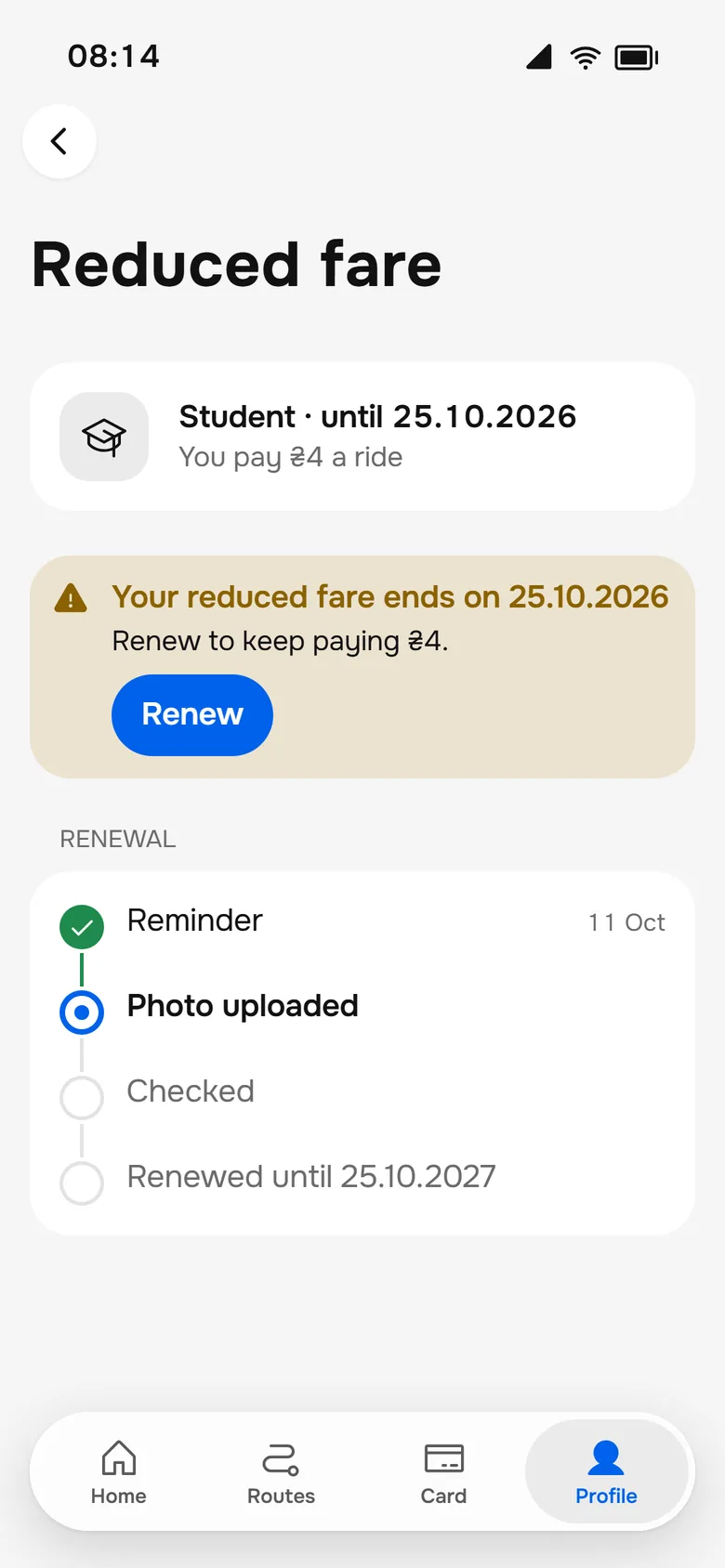

Reduced fare expiring, with a renewal prompt — Reduced fare expiring

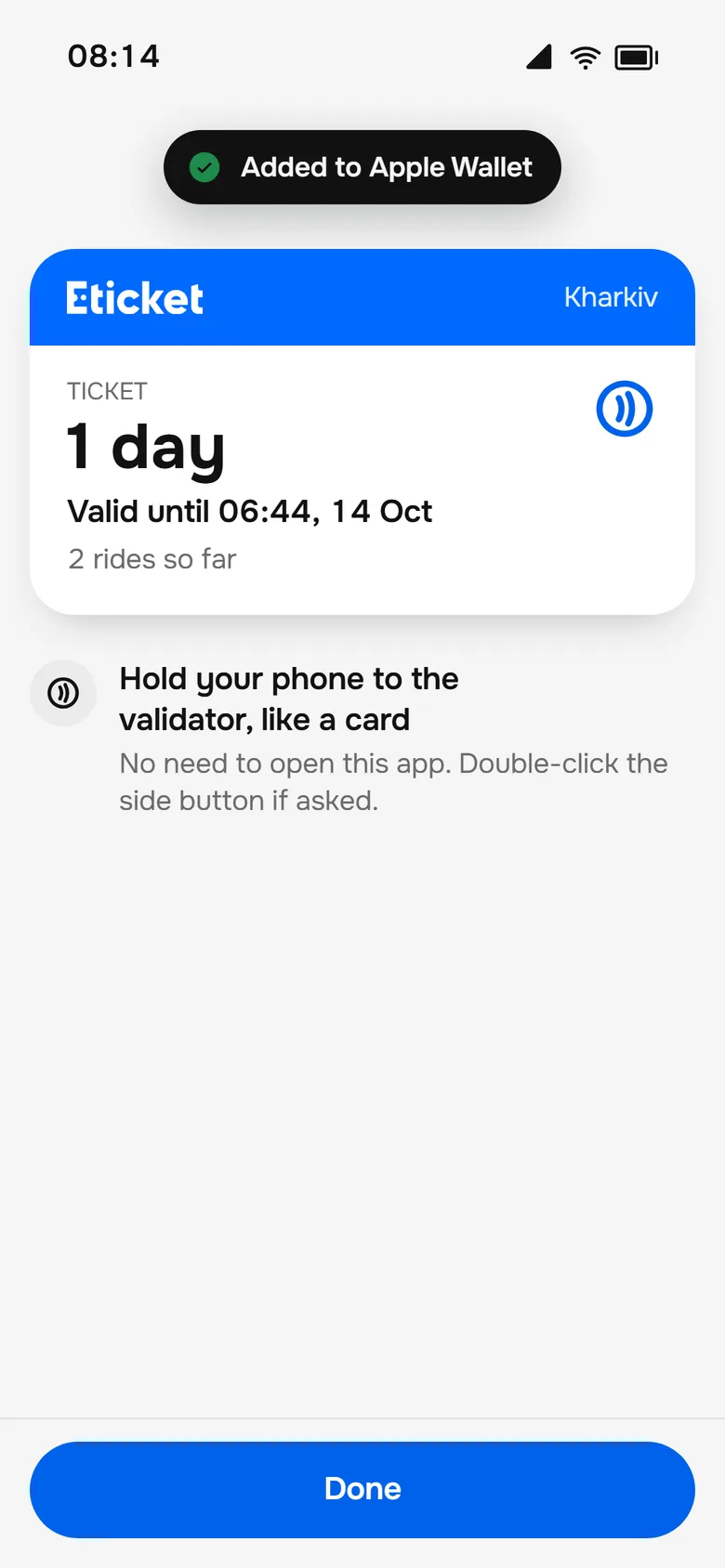

Visitor ticket in Wallet with the validity and rides — Visitor ticket in Wallet

Design system

Quiet interface, loud transport.

Near black and white with one blue accent. The transport code is the only other colour, and it always comes with an icon and a number.

•Metro lines: 1 red, 2 blue, 3 green; trams, trolleybuses and buses by colour
•A true black dark theme with the vivid iOS system colours
•iOS patterns: large titles, a floating glass tab bar, sheets with detents, inset grouped lists
•Onest for Latin and Cyrillic; every component in Storybook, in both themes and both languages

Home in the dark theme with the nearest station and live arrivals — Home, dark

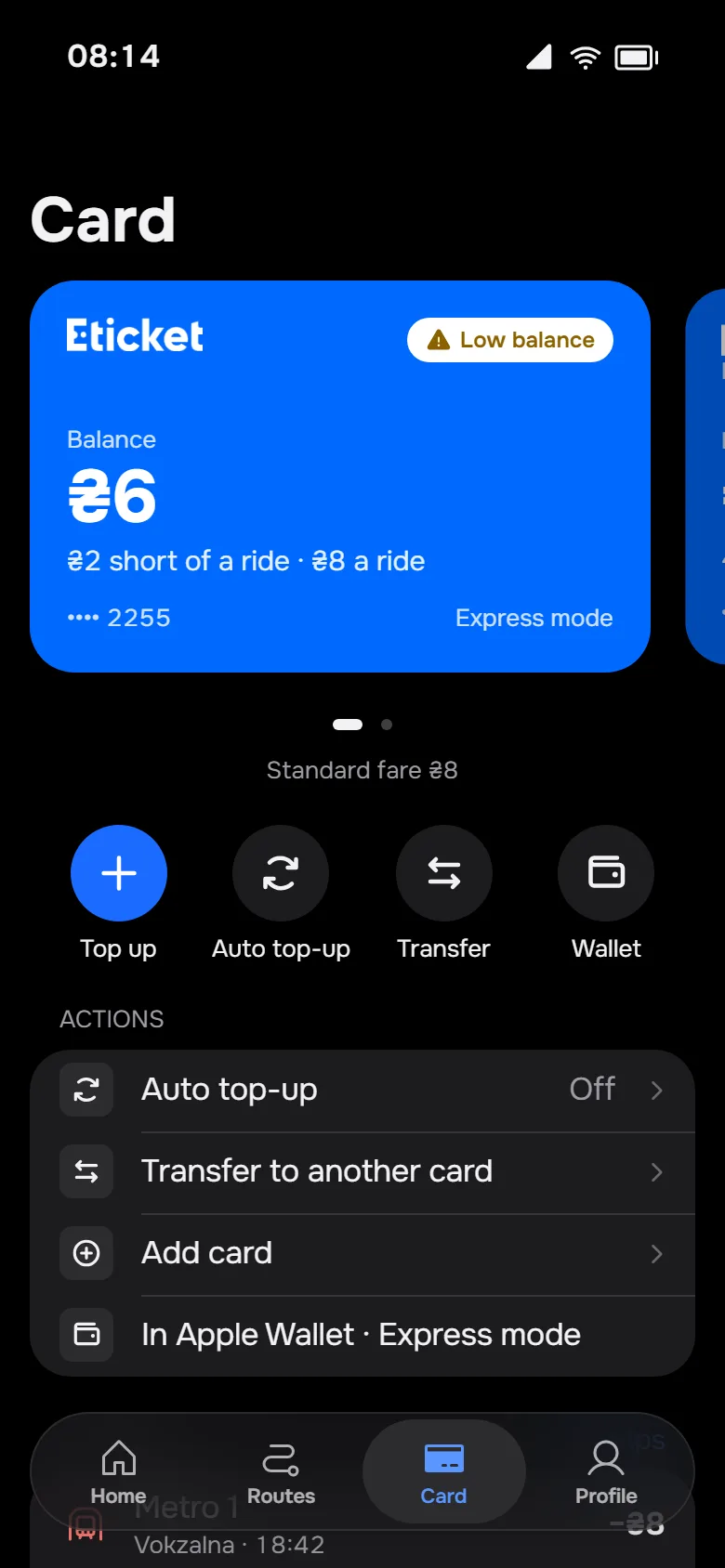

Card tab in the dark theme with a low balance and quick actions — Card, dark

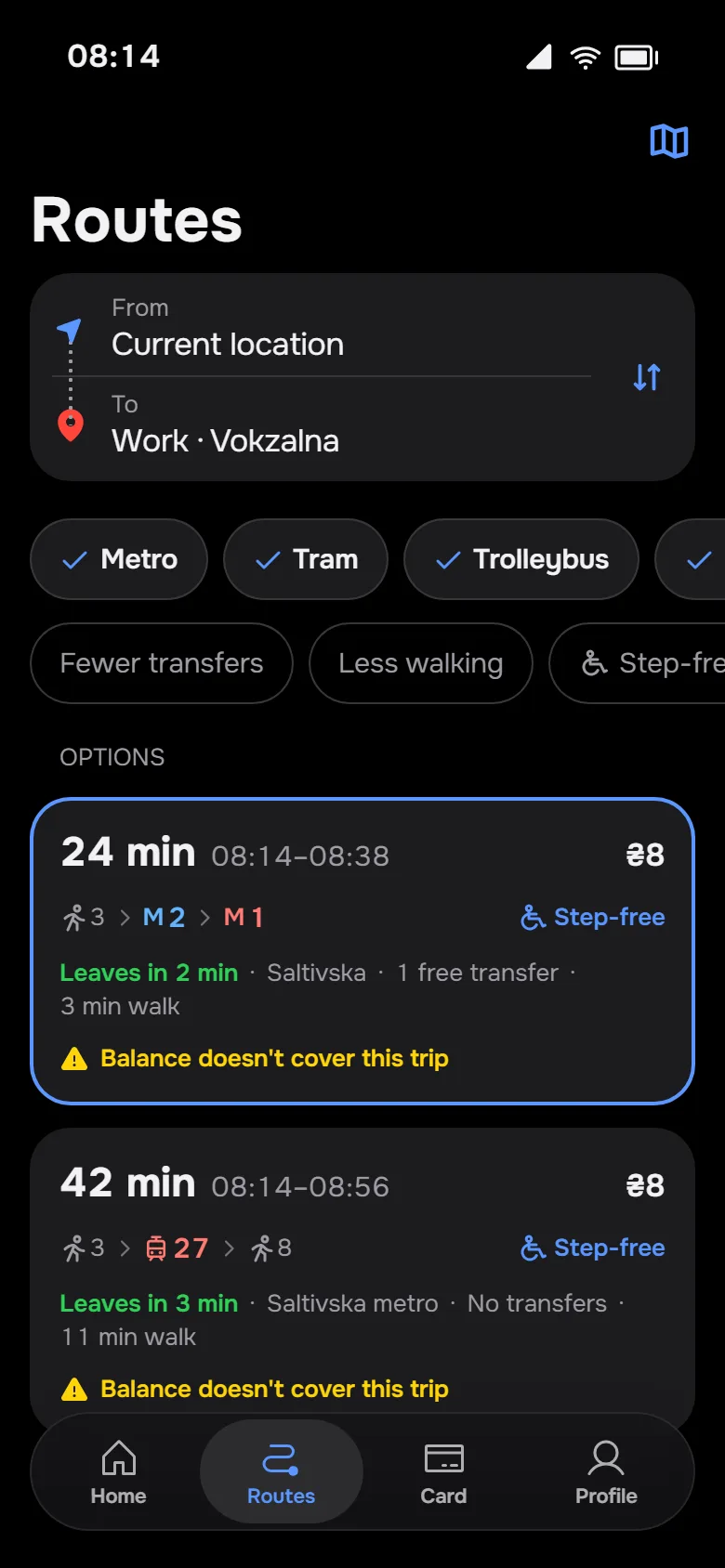

Routes options in the dark theme with the fare — Routes, dark

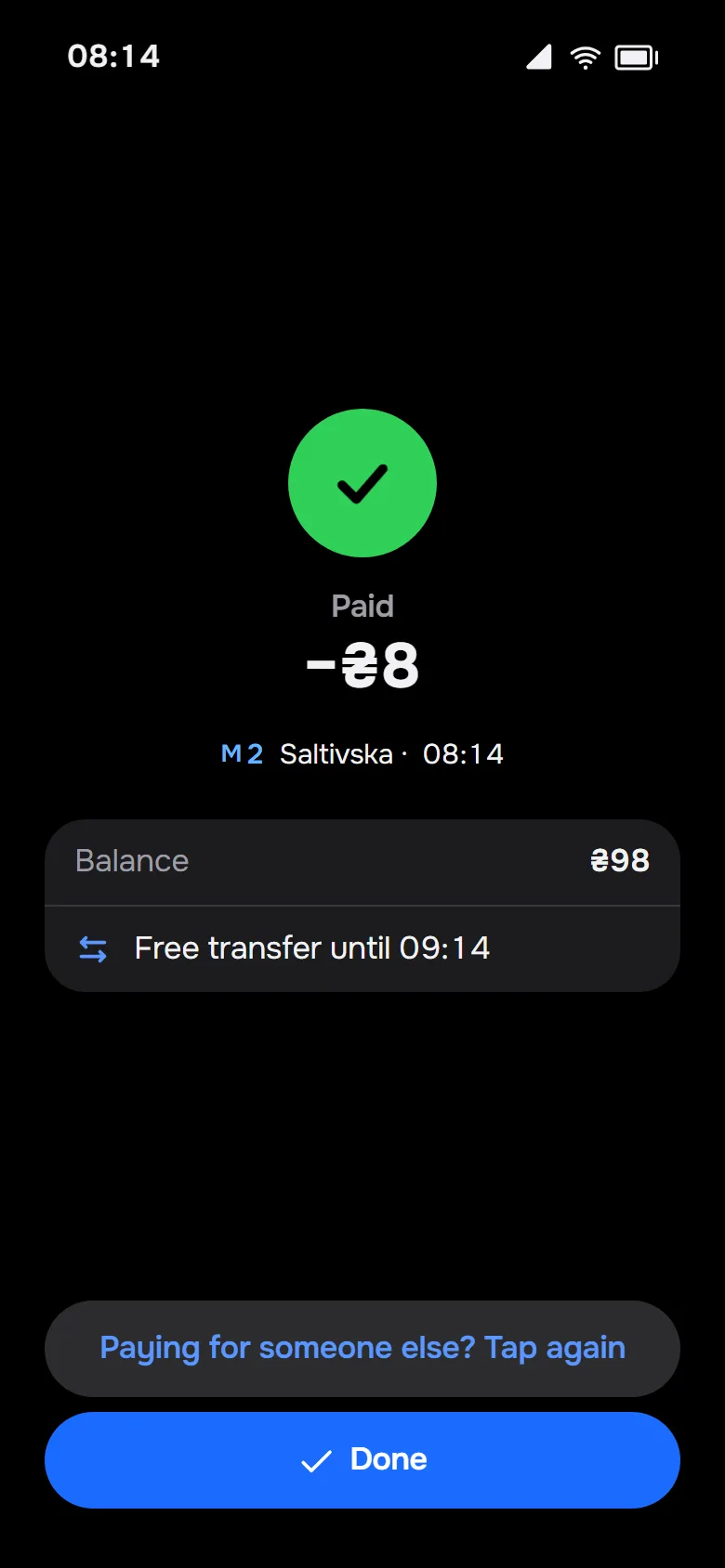

Tap result in the dark theme: Paid, new balance, transfer window — Tap result, dark

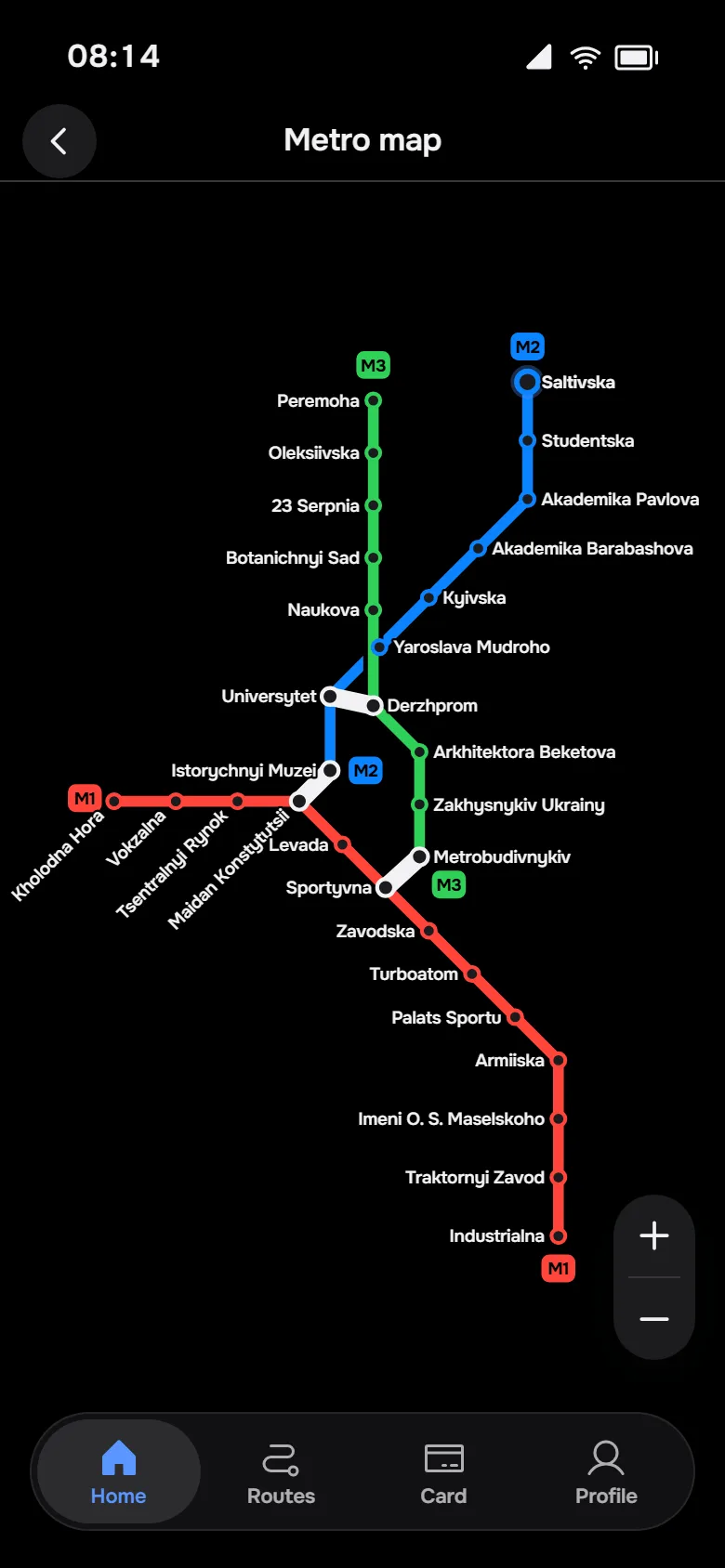

Metro map in the dark theme with the three coloured lines — Metro map, dark

Open the design system

Outcome

What the redesign delivers.

5 → 1

steps to pay at the turnstile, now a single tap with the phone

68.8%

of the riders we researched in 2020 rode with a plastic card

3 lines, 30 stations

of the Kharkiv metro, with the current names

scenarios, clickable end to end

2 × 2

two themes, light and dark, and two languages, Ukrainian and English

key screens

Key takeaways

Three things this project taught me.

01
Design for the turnstile moment
Nothing between the person and the gate. Paying went from five steps to one tap, because that is the moment with the least patience.
02
Arrivals, not stops
A list of stops answers where. Riders were asking when. Home now leads with the time of the next vehicle.
03
A decline should be the fix
A declined tap that only says no leaves someone stuck at the gate. Showing the fare, the balance and the top-up in the same screen turns it into one more tap.

Try it yourself

Tap at the turnstile, build a route and ride as a visitor in the live prototype, or read the design system.
